TLVD42Q1S2
LED RED CLEAR 3MM T/HManufacturer: Vishay Semiconductor Opto Division
Categories: LED Indication - Discrete
Quality Control: Learn More

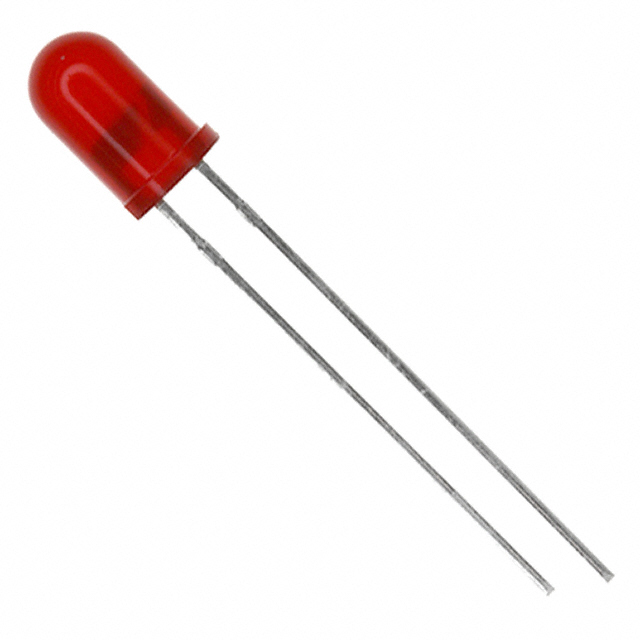

Vishay Semiconductor Opto Division TLVD42 series red LED, part number TLVD42Q1S2. This through-hole, radial package component features a 3mm, T-1 clear lens with a round, flat-top design. The LED emits red light with a dominant wavelength of 640nm and a peak wavelength of 650nm. Operating at a typical forward voltage of 1.8V, it achieves a millicandela rating of 80mcd at a test current of 15mA. The TLVD42Q1S2 offers a wide 170° viewing angle, making it suitable for indication purposes in automotive and industrial applications. It is supplied in bulk packaging.
Additional Information
Series: TLVD42RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 80mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Lens Color | - |
| Current - Test | 15mA |
| Viewing Angle | 170° |
| Height (Max) | 4.90mm |
| Wavelength - Peak | 650nm |
| Wavelength - Dominant | 640nm |
| Supplier Device Package | 3mm |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 3mm, T-1 |
