TLVB4200
LED BLUE CLEAR 3MM T/HManufacturer: Vishay Semiconductor Opto Division
Categories: LED Indication - Discrete
Quality Control: Learn More

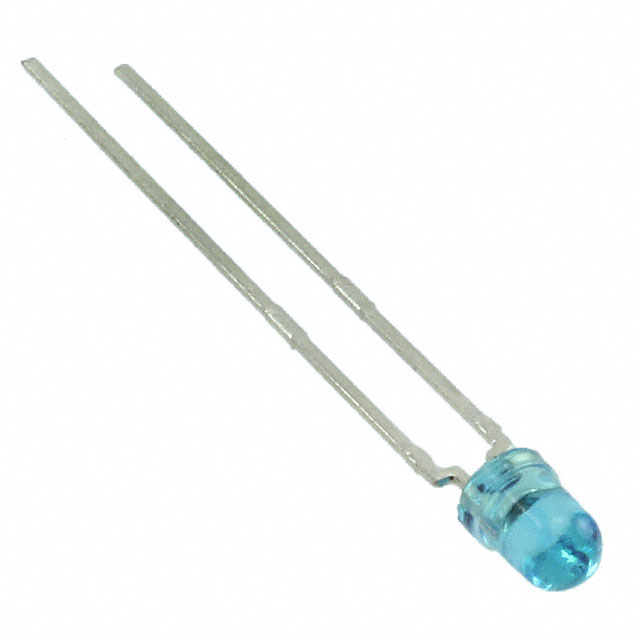

Vishay Semiconductor Opto Division TLVB4200 is a blue LED with a dominant wavelength of 466nm and a peak wavelength of 428nm. This through-hole mounted component features a clear, 3mm radial lens with a flat top, providing a wide 170° viewing angle. The forward voltage (Vf) is 3.9V, and it is specified for a test current of 15mA, delivering a typical luminous intensity of 38mcd. This discrete LED is commonly utilized in industrial automation, consumer electronics, and medical equipment for indication purposes. Its standard configuration and bulk packaging are suitable for high-volume assembly processes.
Additional Information
Series: TLVB4200RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Blue |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 38mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.9V |
| Lens Color | - |
| Current - Test | 15mA |
| Viewing Angle | 170° |
| Height (Max) | 4.90mm |
| Wavelength - Peak | 428nm |
| Wavelength - Dominant | 466nm |
| Supplier Device Package | 3mm |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 3mm, T-1 |
