TLUO2401-AS12
LED RED DIFFUSED 1.8MM T/HManufacturer: Vishay Semiconductor Opto Division
Categories: LED Indication - Discrete
Quality Control: Learn More

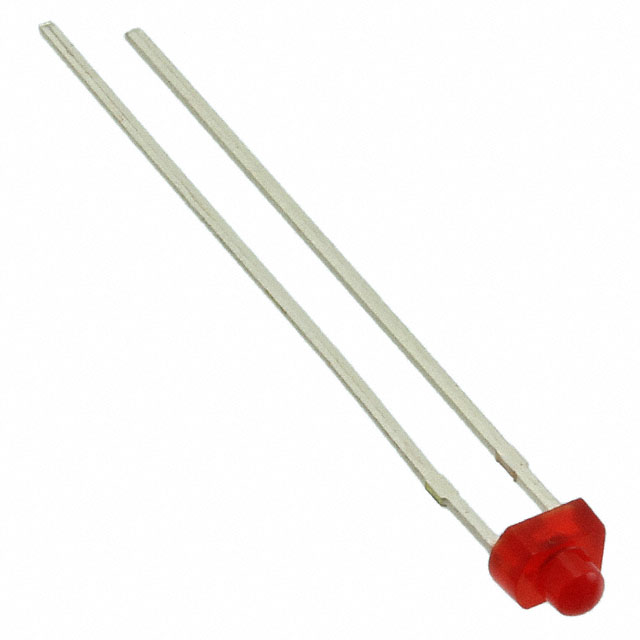

Vishay Semiconductor Opto Division TLUO2401-AS12 is a red diffused LED with a 1.8mm diameter lens and a through-hole mounting type. This discrete component emits light at a dominant wavelength of 618nm with a peak wavelength of 630nm. It operates with a typical forward voltage of 2V and a test current of 20mA, producing a millicandela rating of 10mcd. The LED features a round, domed top lens with a diffused finish for wide light distribution. The component is supplied in a 1.8mm Miniplast package suitable for radial mounting configurations and is available on tape and reel for efficient assembly. This component is widely utilized in industrial automation, medical instrumentation, and consumer electronics for status indication.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | 3.30mm L x 2.40mm W |
| Mounting Type | Through Hole |
| Millicandela Rating | 10mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | 40° |
| Height (Max) | 3.60mm |
| Wavelength - Peak | 630nm |
| Wavelength - Dominant | 618nm |
| Supplier Device Package | 1.8mm Miniplast |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 1.80mm Dia |
