TLUO2400
LED RED DIFFUSED 1.8MM T/HManufacturer: Vishay Semiconductor Opto Division
Categories: LED Indication - Discrete
Quality Control: Learn More

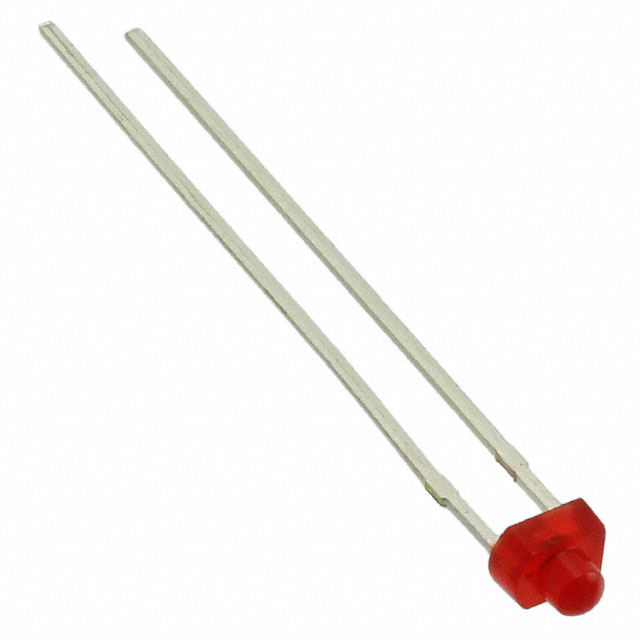

Vishay Semiconductor Opto Division's discrete LED, part number TLUO2400, offers a red diffused light source with a dominant wavelength of 619nm and a peak wavelength of 630nm. This through-hole mounted component features a 1.8mm Miniplast package with a diffused, round, domed top lens. It operates with a typical forward voltage of 2V and a test current of 10mA, achieving a luminous intensity of 2mcd. The viewing angle is 40°. This component is suitable for various indication applications across industrial and consumer electronics sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 2mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | - |
| Current - Test | 10mA |
| Viewing Angle | 40° |
| Height (Max) | 3.60mm |
| Wavelength - Peak | 630nm |
| Wavelength - Dominant | 619nm |
| Supplier Device Package | 1.8mm Miniplast |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | - |
