TLUG2401-AS12Z
LED GREEN DIFFUSED 1.8MM T/HManufacturer: Vishay Semiconductor Opto Division
Categories: LED Indication - Discrete
Quality Control: Learn More

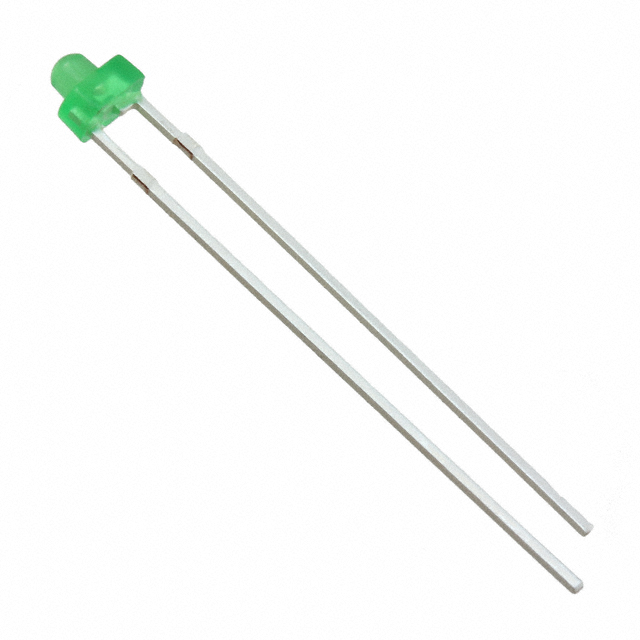

Vishay Semiconductor Opto Division TLUG2401-AS12Z is a green diffused 1.8mm through-hole LED designed for indication applications. This discrete component emits light with a dominant wavelength of 568nm and a peak wavelength of 565nm, providing a typical forward voltage of 2.4V at a test current of 20mA. The LED features a 1.8mm diameter diffused lens with a round, domed top, contributing to a viewing angle of 40°. Its dimensions are 3.30mm L x 2.40mm W, with a maximum height of 3.60mm. The TLUG2401-AS12Z is supplied in a Radial package, specifically a 1.8mm Miniplast, and is available in Tape & Box (TB) packaging. This component is commonly utilized in industrial automation, medical devices, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Box (TB)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Box (TB) |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | 3.30mm L x 2.40mm W |
| Mounting Type | Through Hole |
| Millicandela Rating | 12mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.4V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | 40° |
| Height (Max) | 3.60mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | 568nm |
| Supplier Device Package | 1.8mm Miniplast |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 1.80mm Dia |
