TLRP4406CU
LED GREEN DIFFUSED T-1 T/HManufacturer: Vishay Semiconductor Opto Division
Categories: LED Indication - Discrete
Quality Control: Learn More
Vishay Semiconductor Opto Division's TLRP4406CU is a green diffused T-1 through-hole LED with a dominant wavelength of 560nm and a peak wavelength of 555nm. This electronic component, part of the TLR.440.CU series, features a forward voltage of 10V (typical) and a millicandela rating of 3.3mcd. The T-1 radial package houses a 3mm diffused lens with a domed top, providing a 60° viewing angle. This component is commonly utilized in industrial automation, medical equipment, and consumer electronics for status indication. The TLRP4406CU is supplied in bulk packaging.
Additional Information
Series: TLR.440.CURoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 3.3mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 10V |
| Lens Color | - |
| Current - Test | - |
| Viewing Angle | 60° |
| Height (Max) | 6.10mm |
| Wavelength - Peak | 555nm |
| Wavelength - Dominant | 560nm |
| Supplier Device Package | T-1 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
Request a Quote
Clients Also Buy
TLRH4400CU

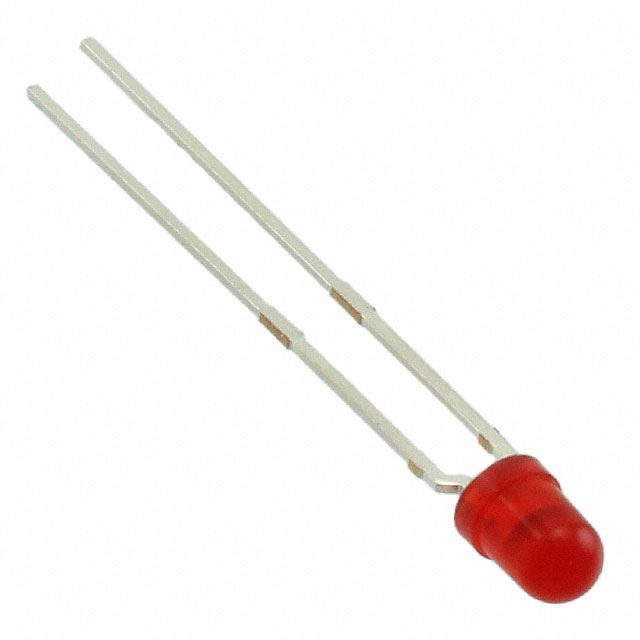

LED RED DIFFUSED T-1 T/H
