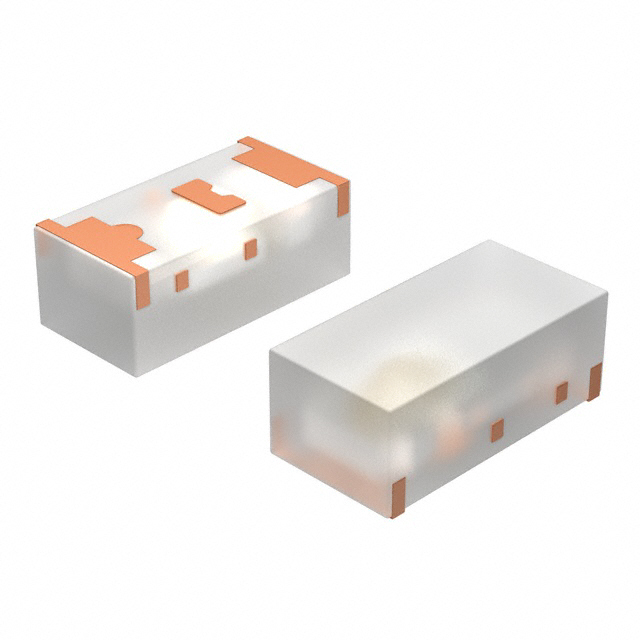

TLMY1100-GS08
LED YELLOW 0603 SMDManufacturer: Vishay Semiconductor Opto Division
Categories: LED Indication - Discrete
Quality Control: Learn More
Vishay Semiconductor Opto Division TLMY1100-GS08 is a yellow 0603 (1608 Metric) SMD LED designed for indication applications. This discrete component features a dominant wavelength of 589nm and a peak wavelength of 591nm, emitting a luminous intensity of 80mcd at a forward current of 20mA. The LED has a typical forward voltage of 2.1V and a wide viewing angle of 160°. Its compact 1.60mm L x 0.80mm W x 0.65mm H footprint makes it suitable for space-constrained designs. Qualified to AEC-Q101 standards, the TLMY1100-GS08 is suitable for automotive applications. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Color | Yellow |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 80mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | 160° |
| Height (Max) | 0.65mm |
| Wavelength - Peak | 591nm |
| Wavelength - Dominant | 589nm |
| Supplier Device Package | 0603 |
| Lens Transparency | - |
| Grade | Automotive |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.60mm x 0.80mm |
| Qualification | AEC-Q101 |
