TLLY5401
LED YELLOW DIFFUSED T-1 3/4 T/HManufacturer: Vishay Semiconductor Opto Division
Categories: LED Indication - Discrete
Quality Control: Learn More

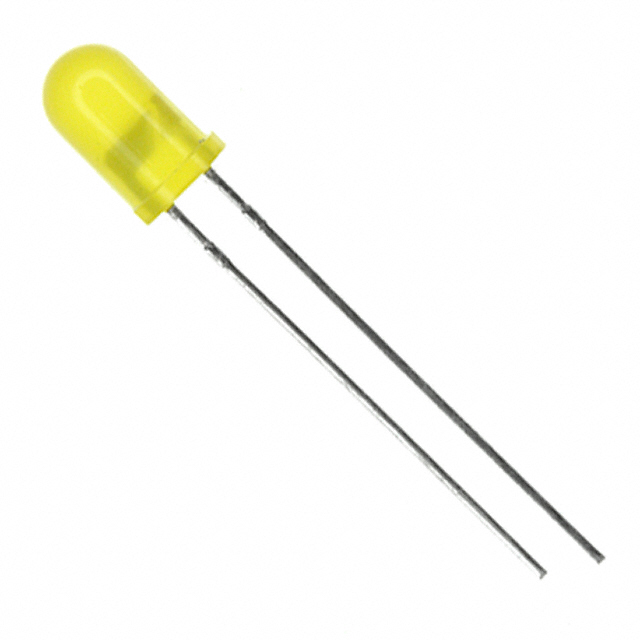

Vishay Semiconductor Opto Division TLLY5401 is a yellow diffused LED with a T-1 3/4 through-hole package. This discrete indicator component operates with a typical forward voltage of 2.4V and a test current of 2mA, producing a luminous intensity of 2mcd. The dominant wavelength is 588nm, with a peak wavelength of 585nm. The diffused lens is round with a domed top, measuring 5.80mm in diameter, and provides a viewing angle of 50°. This component is suitable for applications in industrial automation, consumer electronics, and automotive signaling.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Yellow |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 2mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.4V |
| Lens Color | - |
| Current - Test | 2mA |
| Viewing Angle | 50° |
| Height (Max) | 12.80mm |
| Wavelength - Peak | 585nm |
| Wavelength - Dominant | 588nm |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 5.80mm Dia |
