TLLY5400
LED YELLOW DIFFUSED T-1 3/4 T/HManufacturer: Vishay Semiconductor Opto Division
Categories: LED Indication - Discrete
Quality Control: Learn More

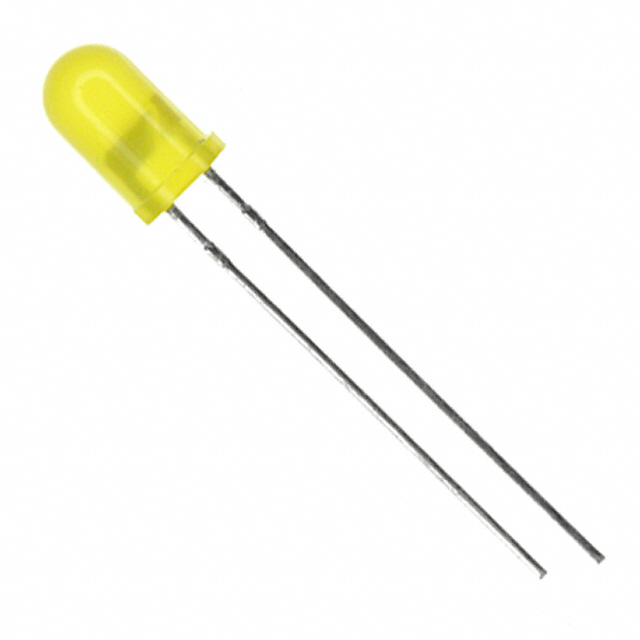

Vishay Semiconductor Opto Division TLLY5400 is a yellow diffused T-1 3/4 through-hole LED. This discrete LED offers a dominant wavelength of 588nm and a peak wavelength of 585nm, emitting a bright yellow light. With a typical forward voltage of 2.4V and a test current of 2mA, it achieves a millicandela rating of 1.2mcd. The diffused lens provides a wide viewing angle of 50°, making it suitable for general indication applications. The radial package, with a lens diameter of 5.80mm, is designed for through-hole mounting. This component is commonly utilized in industrial automation, consumer electronics, and automotive systems for status indication.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Yellow |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 1.2mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.4V |
| Lens Color | - |
| Current - Test | 2mA |
| Viewing Angle | 50° |
| Height (Max) | 12.80mm |
| Wavelength - Peak | 585nm |
| Wavelength - Dominant | 588nm |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 5.80mm Dia |
