TLLG4401-AS12Z
LED GREEN DIFFUSED T-1 T/HManufacturer: Vishay Semiconductor Opto Division
Categories: LED Indication - Discrete
Quality Control: Learn More

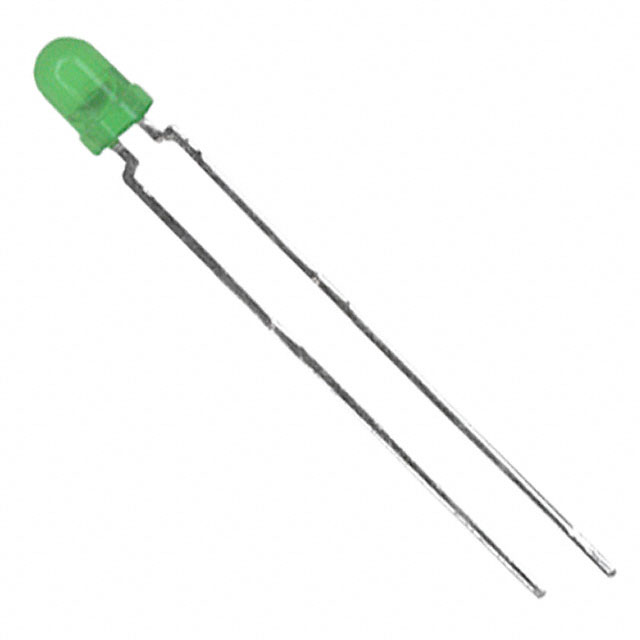

Vishay Semiconductor Opto Division TLLG4401-AS12Z is a green diffused, through-hole LED with a T-1 (3mm) radial package. This component features a dominant wavelength of 569nm and a peak wavelength of 565nm, delivering a typical forward voltage of 1.9V at 2mA test current. The diffused lens style provides a 50° viewing angle and a millicandela rating of 2mcd. This discrete LED is commonly utilized in industrial automation, consumer electronics, and medical equipment for status indication. The TLLG4401-AS12Z is supplied in Tape & Box (TB) packaging.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Box (TB)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Box (TB) |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 2mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Lens Color | - |
| Current - Test | 2mA |
| Viewing Angle | 50° |
| Height (Max) | 6.10mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | 569nm |
| Supplier Device Package | T-1 (3mm) |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
