TLHY6200-CS12
LED YELLOW CLEAR T-1 3/4 T/HManufacturer: Vishay Semiconductor Opto Division
Categories: LED Indication - Discrete
Quality Control: Learn More

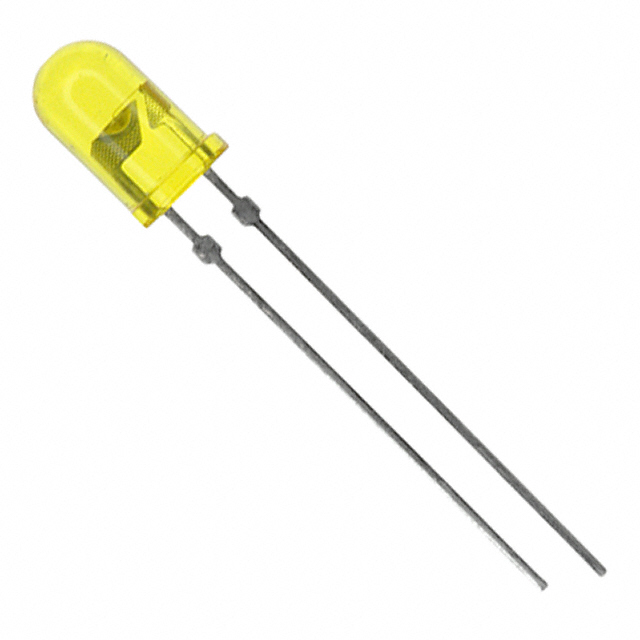

Vishay Semiconductor Opto Division TLH.620 Series Yellow LED, part number TLHY6200-CS12. This through-hole mounted, radial package component features a clear, domed T-1 3/4 lens with a 28° viewing angle. The yellow LED exhibits a typical forward voltage of 2.4V and a peak wavelength of 585nm. Tested at 20mA, it provides a luminous intensity of 50mcd. This component is commonly utilized in industrial automation, consumer electronics, and automotive applications for general indication. The part is supplied in a Tape & Reel (TR) package.
Additional Information
Series: TLH.620RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | Radial |
| Color | Yellow |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 50mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.4V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | 28° |
| Height (Max) | - |
| Wavelength - Peak | 585nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
