TLHP42J2L1
LED GREEN CLEAR T-1 T/HManufacturer: Vishay Semiconductor Opto Division
Categories: LED Indication - Discrete
Quality Control: Learn More

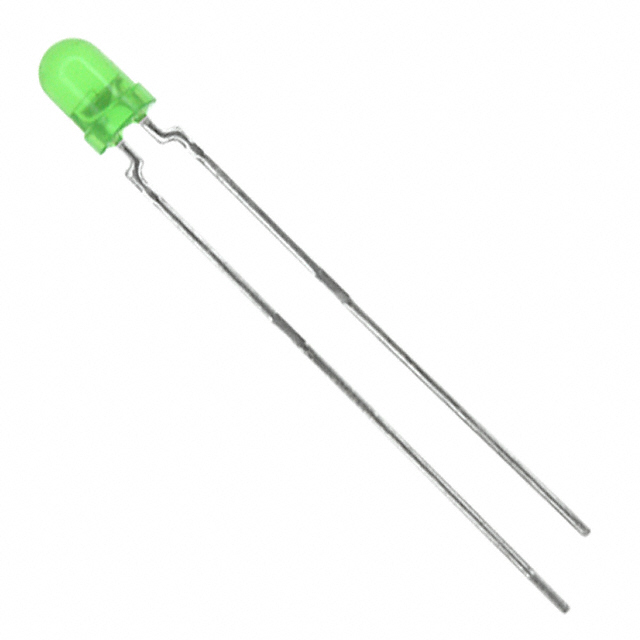

Vishay Semiconductor Opto Division TLHP42J2L1 is a green, through-hole mounted Light Emitting Diode. This discrete component features a clear, domed T-1 lens and emits light with a dominant wavelength of 560nm and a peak wavelength of 555nm. At a forward current of 10mA, it provides a luminous intensity of 9.8mcd. The forward voltage (Vf) is typically 2.2V. The TLHP42J2L1 is suitable for applications requiring visual indication, commonly found in industrial, consumer electronics, and automotive sectors. Its radial package and through-hole mounting facilitate easy integration into printed circuit boards.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 9.8mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | - |
| Current - Test | 10mA |
| Viewing Angle | 44° |
| Height (Max) | 6.10mm |
| Wavelength - Peak | 555nm |
| Wavelength - Dominant | 560nm |
| Supplier Device Package | T-1 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
