TLHG6400-CS12Z
LED GREEN DIFFUSED T-1 3/4 T/HManufacturer: Vishay Semiconductor Opto Division
Categories: LED Indication - Discrete
Quality Control: Learn More

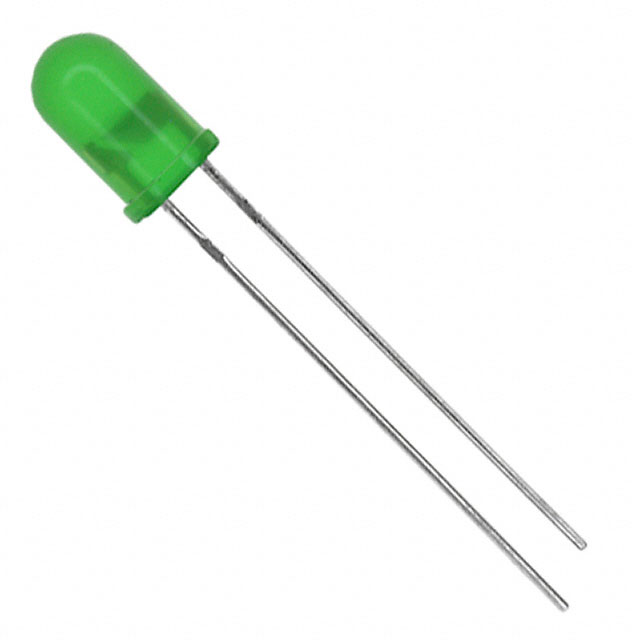

Vishay Semiconductor Opto Division TLHG6400-CS12Z is a green diffused LED designed for indication applications. This through-hole component features a 5mm, T-1 3/4 radial package with a round, domed top lens. It emits light with a dominant wavelength of 569nm and a peak wavelength of 565nm, offering a typical forward voltage of 2.4V at 10mA test current. The diffused lens provides a wide viewing angle of 60°, with a millicandela rating of 10mcd. This component is suitable for use in industrial and consumer electronics sectors. It is supplied in cut tape packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Cut Tape (CT) |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 10mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.4V |
| Lens Color | - |
| Current - Test | 10mA |
| Viewing Angle | 60° |
| Height (Max) | 9.00mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | 569nm |
| Supplier Device Package | T-1 3/4 (5mm) |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
