TLHG5200
LED GREEN DIFFUSED T-1 3/4 T/HManufacturer: Vishay Semiconductor Opto Division
Categories: LED Indication - Discrete
Quality Control: Learn More

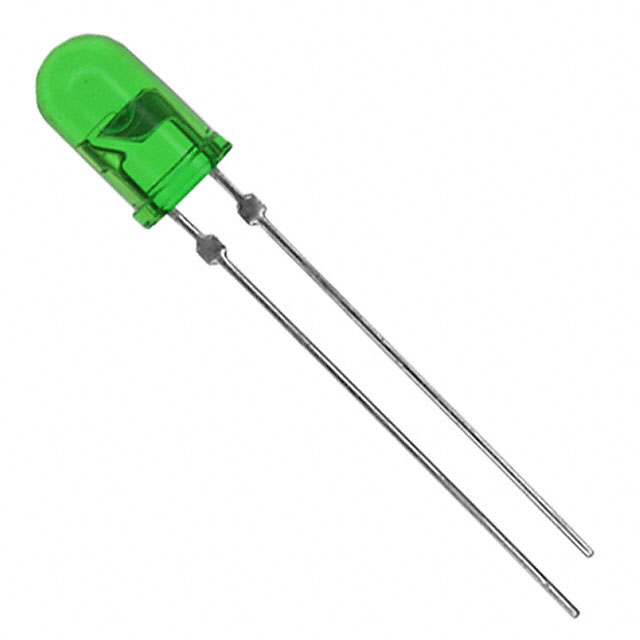

Vishay Semiconductor Opto Division TLHG5200 is a diffused, through-hole mounted green LED. This discrete optoelectronic component emits light with a dominant wavelength of 569nm and a peak wavelength of 565nm. Featuring a T-1 3/4 package, the TLHG5200 offers a typical forward voltage of 2V and a forward current of 10mA, producing a millicandela rating of 40mcd at the test current. The diffused lens and a 28° viewing angle are suitable for various indication applications across industrial automation, consumer electronics, and medical devices.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 40mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | - |
| Current - Test | 10mA |
| Viewing Angle | 28° |
| Height (Max) | 12.20mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | 569nm |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
