TLHF5400
LED ORANGE DIFFUSED T-1 3/4 T/HManufacturer: Vishay Semiconductor Opto Division
Categories: LED Indication - Discrete
Quality Control: Learn More

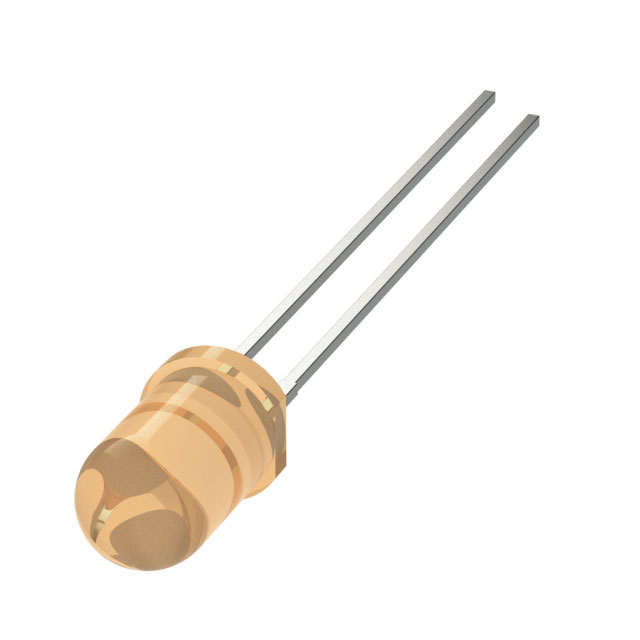

Vishay Semiconductor Opto Division TLHF5400 is a through-hole mounted orange LED with a diffused, round, domed top lens measuring 5mm (T-1 3/4). This discrete LED operates with a typical forward voltage of 2V and a forward current of 10mA, achieving a millicandela rating of 160mcd. Its dominant wavelength is 605nm, with a peak wavelength of 610nm and a viewing angle of 60°. The component is supplied in bulk packaging. This LED is commonly utilized in industrial automation, consumer electronics, and general indication applications where reliable visual feedback is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Orange |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 160mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | - |
| Current - Test | 10mA |
| Viewing Angle | 60° |
| Height (Max) | 12.80mm |
| Wavelength - Peak | 610nm |
| Wavelength - Dominant | 605nm |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
