TLHB4401
LED BLUE DIFFUSED T-1 T/HManufacturer: Vishay Semiconductor Opto Division
Categories: LED Indication - Discrete
Quality Control: Learn More

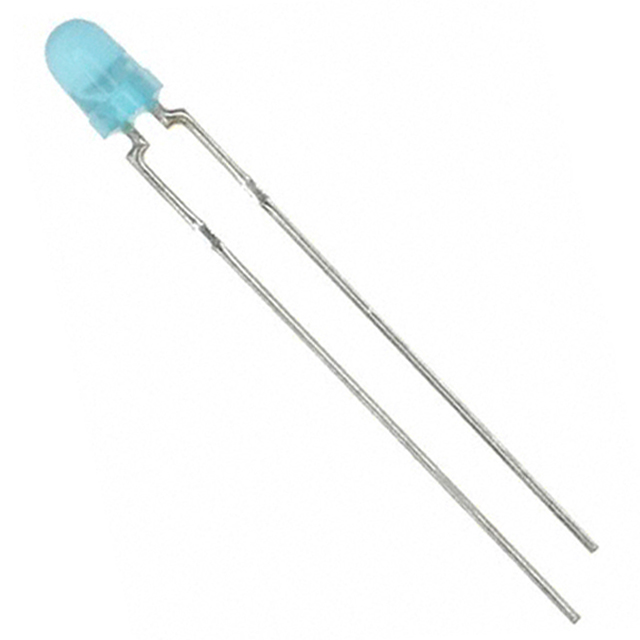

Vishay Semiconductor Opto Division TLHB4401 is a blue diffused LED with a peak wavelength of 428nm and a dominant wavelength of 466nm. This through-hole mounted component features a T-1 package with a radial lead configuration. The diffused lens style provides a wide 60° viewing angle, and the LED achieves a typical luminous intensity of 21mcd at 20mA forward current. The forward voltage (Vf) is rated at 3.9V. Commonly utilized in general indication applications across various industries, including industrial automation and consumer electronics, the TLHB4401 is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Blue |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 21mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.9V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | 60° |
| Height (Max) | 6.10mm |
| Wavelength - Peak | 428nm |
| Wavelength - Dominant | 466nm |
| Supplier Device Package | T-1 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
