TLCO5100
LED ORANGE CLEAR T-1 3/4 T/HManufacturer: Vishay Semiconductor Opto Division
Categories: LED Indication - Discrete
Quality Control: Learn More

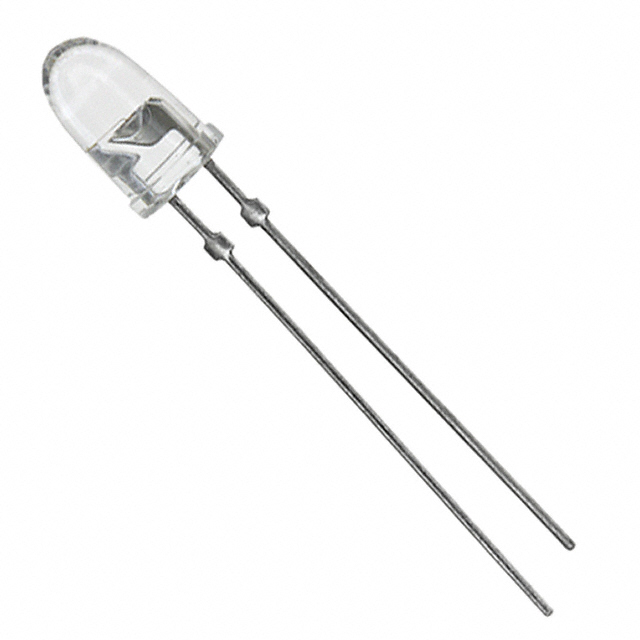

Vishay Semiconductor Opto Division's TLC.51 series TLCO5100 is a through-hole mounted orange LED, featuring a clear, colorless lens with a domed top. This T-1 3/4 radial component emits light at a dominant wavelength of 605nm with a peak wavelength of 611nm. Optimized for indication, it achieves a typical forward voltage of 2.1V at a test current of 50mA, producing a luminous intensity of 12000mcd. The narrow viewing angle of 18° ensures focused light output. This device is suitable for applications in industrial automation, telecommunications equipment, and general electronic instrumentation where reliable, high-intensity orange indication is critical. The component is supplied in bulk packaging.
Additional Information
Series: TLC.51RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Orange |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 12000mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Colorless |
| Current - Test | 50mA |
| Viewing Angle | 18° |
| Height (Max) | 9.00mm |
| Wavelength - Peak | 611nm |
| Wavelength - Dominant | 605nm |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5.80mm Dia |
