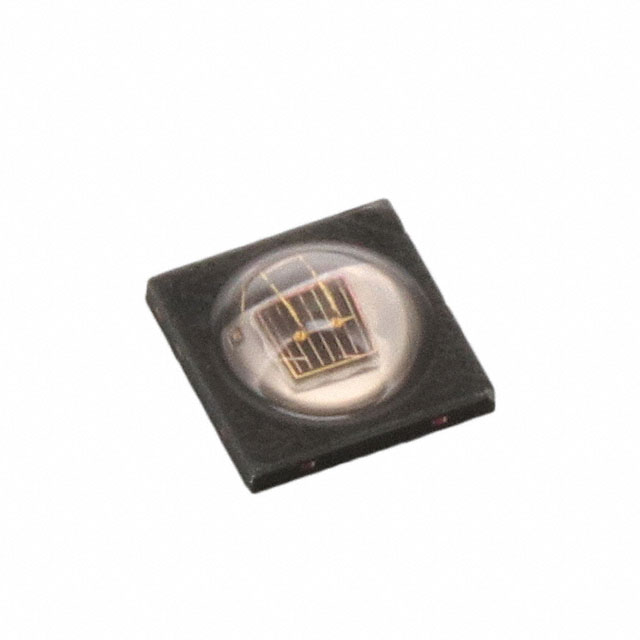

VSMY98575ADS
EMITTER IR 850NM 1A SMDManufacturer: Vishay Semiconductor Opto Division
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Vishay Semiconductor Opto Division VSMY98575ADS is an infrared (IR) emitter from the SurfLight™ series. This surface-mount component features a 850nm wavelength and a 150° viewing angle. It is rated for a DC forward current of 1A, with a typical forward voltage of 3.1V. The radiant intensity is specified at a minimum of 160mW/sr at 1A. The device is packaged in a 3-SMD, No Lead configuration and supplied on tape and reel. Operating temperature ranges from -40°C to 85°C. This high-power IR emitter is suitable for applications in automotive, industrial automation, and security systems.
Additional Information
Series: SurfLight™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-SMD, No Lead |
| Wavelength | 850nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 3.1V |
| Viewing Angle | 150° |
| Current - DC Forward (If) (Max) | 1A |
| Radiant Intensity (Ie) Min @ If | 160mW/sr @ 1A |
