VSMY98545ADS
EMITTER IR 850NM 1A 3SMDManufacturer: Vishay Semiconductor Opto Division
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

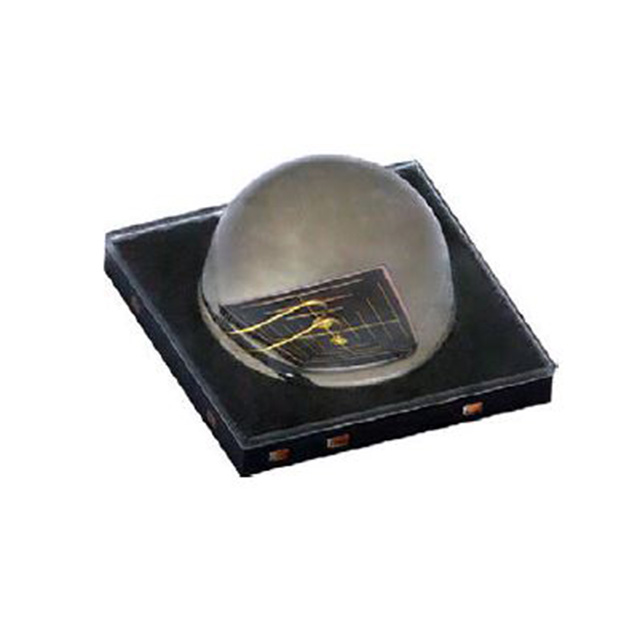

Vishay Semiconductor Opto Division VSMY98545ADS is an infrared (IR) emitter from the SurfLight™ series. This 850nm emitter features a 3-SMD, No Lead package designed for surface mounting. It operates with a typical forward voltage of 3.1V and can handle a DC forward current of up to 1A. At 1A, it delivers a radiant intensity of a minimum of 400mW/sr with a wide 90° viewing angle. The component is suitable for operation within an ambient temperature range of -40°C to 85°C and is supplied in Tape & Reel packaging. This device is commonly utilized in machine vision, surveillance systems, and industrial automation applications.
Additional Information
Series: SurfLight™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-SMD, No Lead |
| Wavelength | 850nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Forward (Vf) (Typ) | 3.1V |
| Viewing Angle | 90° |
| Current - DC Forward (If) (Max) | 1A |
| Radiant Intensity (Ie) Min @ If | 400mW/sr @ 1A |
