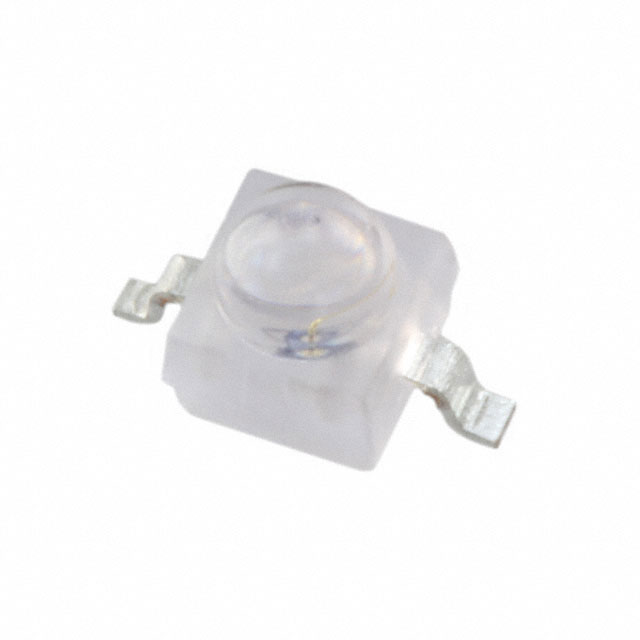

VSMG285011G
EMITTER IR 850NM 100MA SMDManufacturer: Vishay Semiconductor Opto Division
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Vishay Semiconductor Opto Division VSMG285011G is an 850nm infrared emitter designed for surface-mount applications. This component features a typical forward voltage of 1.5V and a maximum DC forward current of 100mA. It delivers a radiant intensity of 40mW/sr at 100mA with a narrow 24° viewing angle. The emitter is housed in a 2-SMD, Gull Wing package, suitable for automated assembly and operating across a temperature range of -40°C to 85°C. Commonly found in automotive, industrial automation, and security systems, this Vishay Semiconductor Opto Division component offers reliable IR illumination for various sensing and optical communication tasks. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Gull Wing |
| Wavelength | 850nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 24° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 40mW/sr @ 100mA |
