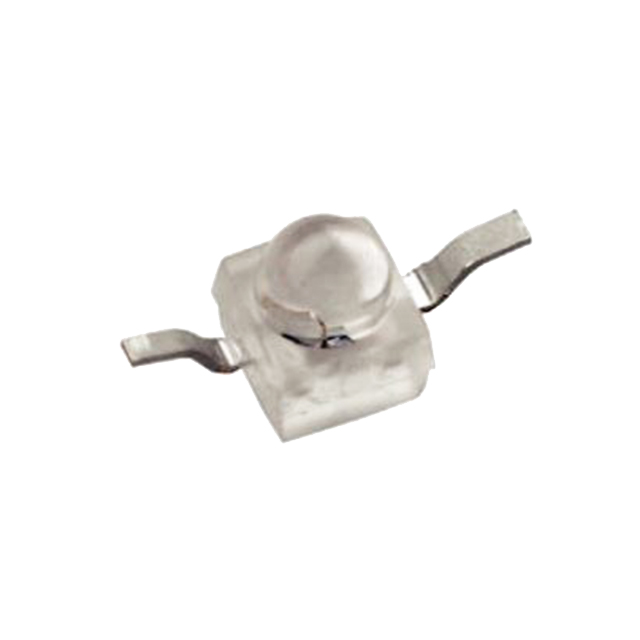

VSMG2000X01
EMITTER IR 850NM 100MA SMDManufacturer: Vishay Semiconductor Opto Division
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
The Vishay Semiconductor Opto Division VSMG2000X01 is an infrared emitter with a peak wavelength of 850nm. This surface-mount component, housed in a 2-SMD, Z-Bend package, operates with a typical forward voltage of 1.45V and a maximum DC forward current of 100mA. Engineered for efficient light emission, it provides a radiant intensity of 20mW/sr at 100mA with a narrow viewing angle of 24°. The VSMG2000X01 is designed for operation across an ambient temperature range of -40°C to 85°C. Its specifications make it suitable for applications in security and surveillance systems, proximity sensing, and automotive safety features. The component is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Z-Bend |
| Wavelength | 850nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.45V |
| Viewing Angle | 24° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 20mW/sr @ 100mA |
