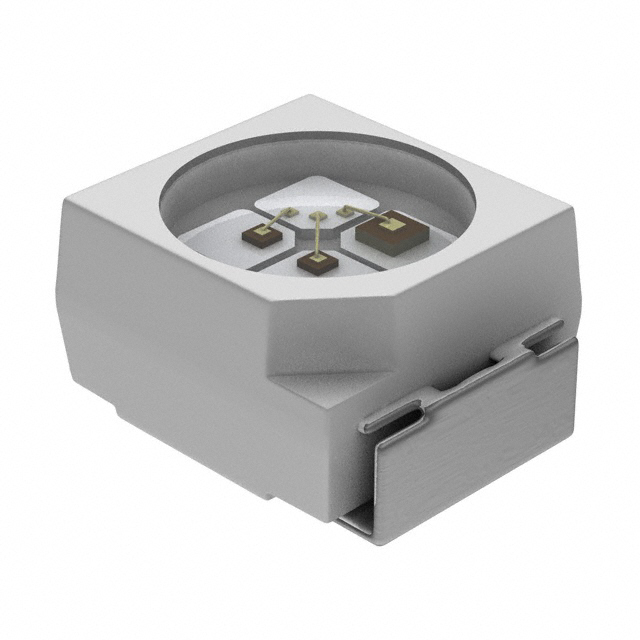

VSMF4720-GS08
EMITTER IR 870NM 100MA SMDManufacturer: Vishay Semiconductor Opto Division
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Vishay Semiconductor Opto Division VSMF4720-GS08 is an infrared emitter designed for high-performance optical sensing applications. This surface-mount device features a wavelength of 870nm and a typical forward voltage of 1.45V at a maximum forward current of 100mA. The emitter delivers a radiant intensity of 10mW/sr at 100mA with a wide viewing angle of 120°. Operating within a temperature range of -40°C to 85°C, the VSMF4720-GS08 is housed in a 2-SMD, J-Lead package and supplied on a tape and reel. Its robust design makes it suitable for use in automotive, industrial automation, and security systems where reliable IR illumination is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, J-Lead |
| Wavelength | 870nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.45V |
| Viewing Angle | 120° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 10mW/sr @ 100mA |
Request a Quote
