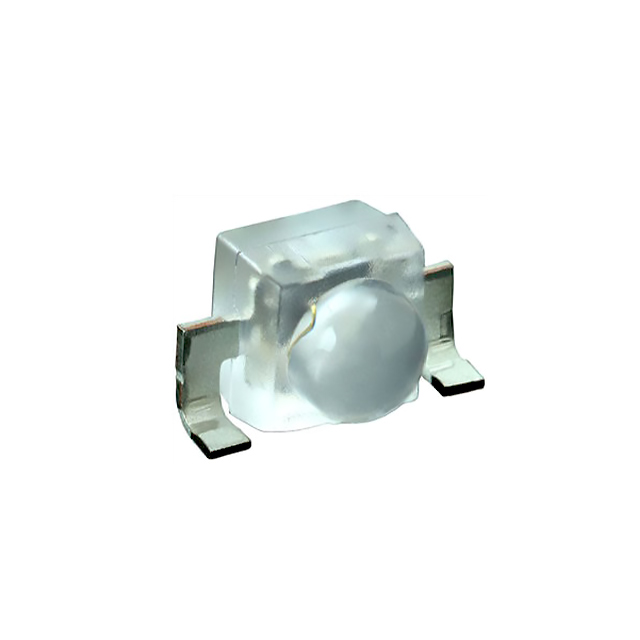

VSMF2893SLX01
EMITTER IR 890NM 100MA SMDManufacturer: Vishay Semiconductor Opto Division
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Vishay Semiconductor Opto Division VSMF2893SLX01 is an infrared emitter with a peak wavelength of 890nm. This surface-mount device features a typical forward voltage of 1.4V and a maximum forward current of 100mA. The emitter provides a radiant intensity of 10mW/sr at 100mA with a viewing angle of 50 degrees. Its 2-SMD, Side View package and side-view orientation are suitable for compact board designs. Operating within a temperature range of -40°C to 85°C, this component is commonly utilized in applications such as proximity sensing, optical encoders, and general IR signaling within industrial automation, consumer electronics, and automotive systems. The VSMF2893SLX01 is supplied on tape and reel for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Side View |
| Wavelength | 890nm |
| Mounting Type | Surface Mount, Right Angle |
| Type | Infrared (IR) |
| Orientation | Side View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.4V |
| Viewing Angle | 50° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 10mW/sr @ 100mA |
