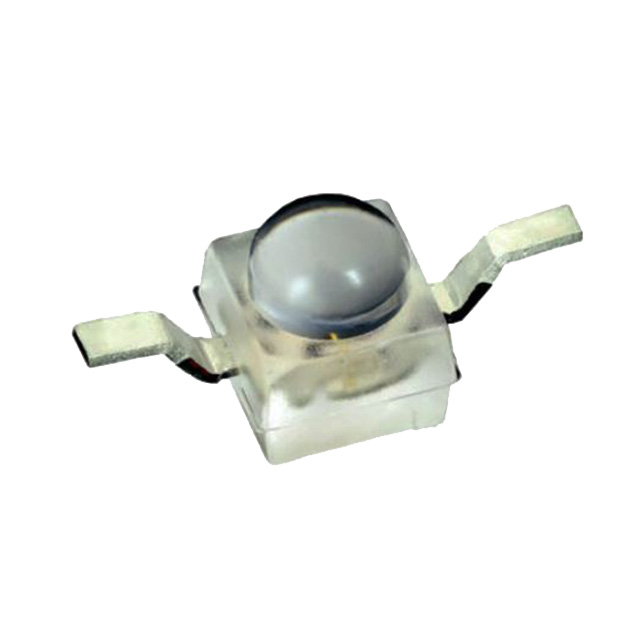

VSMF2893RGX01
EMITTER IR 890NM 100MA SMDManufacturer: Vishay Semiconductor Opto Division
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Vishay Semiconductor Opto Division VSMF2893RGX01 is an infrared (IR) emitter with a peak wavelength of 890nm. This surface-mount component features a 50° viewing angle and a typical forward voltage (Vf) of 1.4V at 100mA. The device offers a radiant intensity of 10mW/sr at 100mA and is housed in a 2-SMD, Z-Bend package. Operating within a temperature range of -40°C to 85°C, it is supplied on tape and reel for automated assembly. Applications include proximity sensing, optical switching, and general IR illumination in industrial, automotive, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Z-Bend |
| Wavelength | 890nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.4V |
| Viewing Angle | 50° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 10mW/sr @ 100mA |
