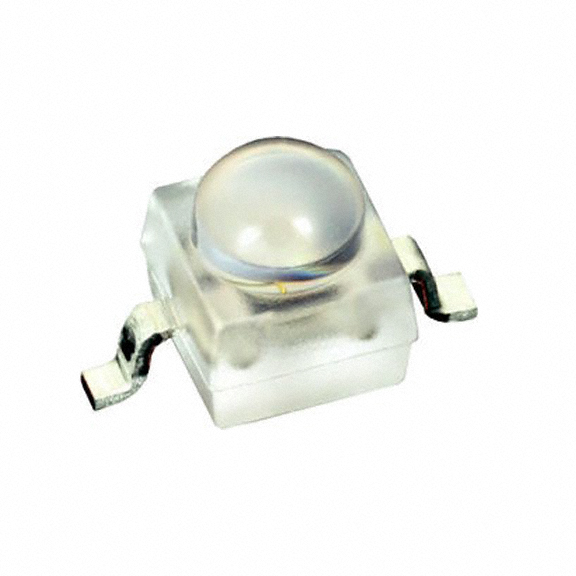

VSMF288011GX01
IR EMITTER 890NM HI SPEED GW SMDManufacturer: Vishay Semiconductor Opto Division
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Vishay Semiconductor Opto Division VSMF288011GX01 is an 890nm infrared emitter designed for high-speed surface mount applications. This 2-SMD, Gull Wing package component features a typical forward voltage of 1.6V and a maximum DC forward current of 100mA. It delivers a radiant intensity of at least 18mW/sr at 100mA with a narrow viewing angle of 22°. Operating across a temperature range of -40°C to 85°C, this device is suitable for demanding applications in industries such as industrial automation, automotive, and security systems where precise optical signaling is critical. The component is supplied in Tape & Reel packaging for efficient automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Gull Wing |
| Wavelength | 890nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.6V |
| Viewing Angle | 22° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 18mW/sr @ 100mA |
