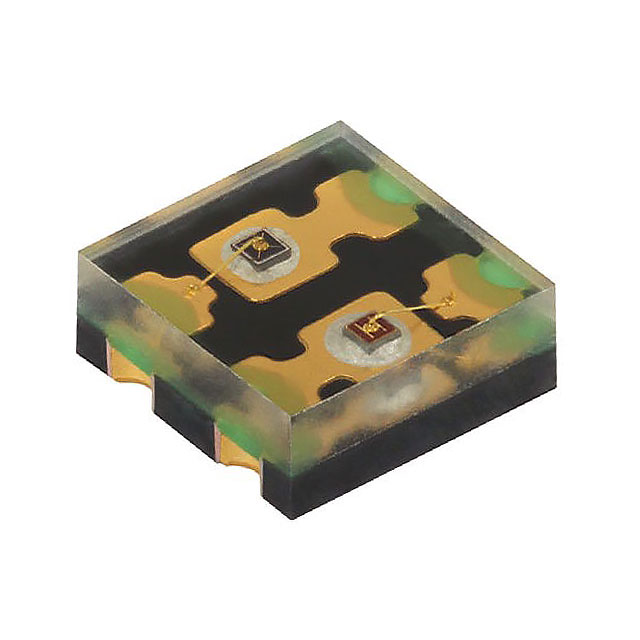

VSMD66694
EMITTER IR 940NM, 660NM 70MA SMDManufacturer: Vishay Semiconductor Opto Division
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Vishay Semiconductor Opto Division VSMD66694 is a surface-mount IR and Visible Emitter featuring dual wavelengths. This component provides a 940nm infrared output and a 660nm visible red output, both with a wide 120° viewing angle. The device operates with a typical forward voltage of 1.4V for the 940nm emission and 2V for the 660nm emission, with a maximum forward current of 70mA. Housed in a 2-SMD, No Lead package suitable for tape and reel packaging, it is designed for operation within an ambient temperature range of -25°C to 85°C. This emitter finds application in various industrial and consumer electronics where precise optical signaling and illumination are critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Wavelength | 940nm, 660nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR), Visible |
| Orientation | Top View |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.4V, 2V |
| Viewing Angle | 120° |
| Current - DC Forward (If) (Max) | 70mA |
| Radiant Intensity (Ie) Min @ If | - |
