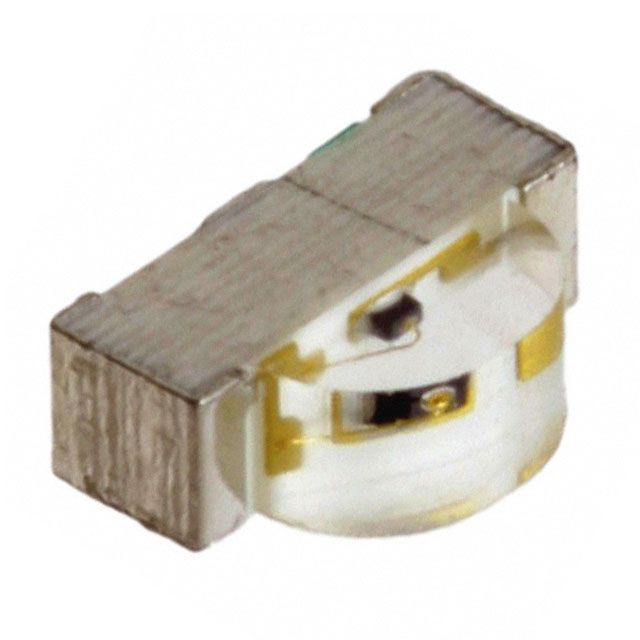

VSMB10940X01
EMITTER IR 940NM 65MA SMDManufacturer: Vishay Semiconductor Opto Division
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Vishay Semiconductor Opto Division VSMB10940X01 is a surface-mount infrared emitter designed for applications requiring precise optical signaling. This component features a 940nm wavelength, making it suitable for proximity sensing, optical encoders, and machine vision systems in industrial automation and automotive sectors. It operates with a typical forward voltage of 1.24V and a maximum DC forward current of 65mA. The VSMB10940X01 offers a radiant intensity of 0.50mW/sr at 20mA and a wide 150° viewing angle, provided in a 2-SMD, No Lead package with a right-angle mounting orientation. The emitter is supplied on tape and reel for efficient automated assembly and operates across a temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Wavelength | 940nm |
| Mounting Type | Surface Mount, Right Angle |
| Type | Infrared (IR) |
| Orientation | Side View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.24V |
| Viewing Angle | 150° |
| Current - DC Forward (If) (Max) | 65mA |
| Radiant Intensity (Ie) Min @ If | 0.50mW/sr @ 20mA |
