VSLB9530S
EMITTER IR 940NM 150MA 4-DIPManufacturer: Vishay Semiconductor Opto Division
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

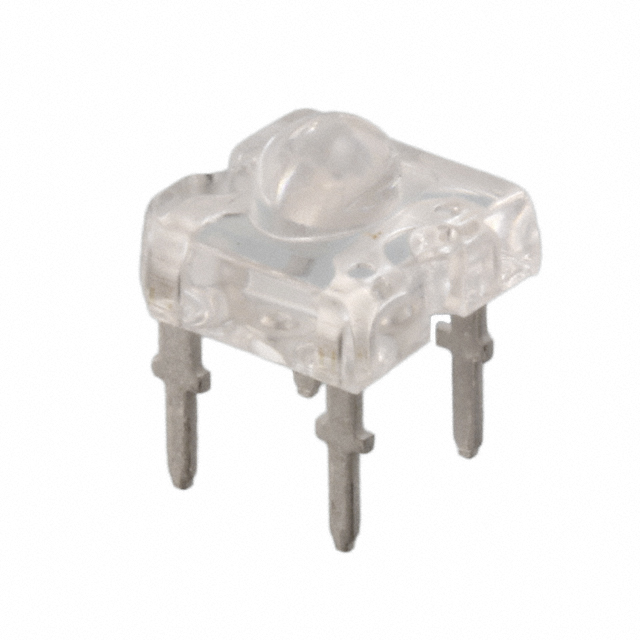

The Vishay Semiconductor Opto Division VSLB9530S is a 940nm infrared LED emitter packaged in a 4-DIP through-hole component. This device features a forward voltage of 1.28V and a maximum DC forward current of 150mA. Its radiant intensity is specified at a minimum of 60mW/sr at 100mA, with a viewing angle of 36 degrees. Operating across a temperature range of -40°C to 95°C, this emitter is suitable for applications in automotive, industrial automation, and consumer electronics where reliable IR signal generation is critical. The 4-DIP (0.200", 5.08mm) package is designed for standard PCB mounting.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 4-DIP (0.200"", 5.08mm) |
| Wavelength | 940nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 95°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.28V |
| Viewing Angle | 36° |
| Current - DC Forward (If) (Max) | 150mA |
| Radiant Intensity (Ie) Min @ If | 60mW/sr @ 100mA |
