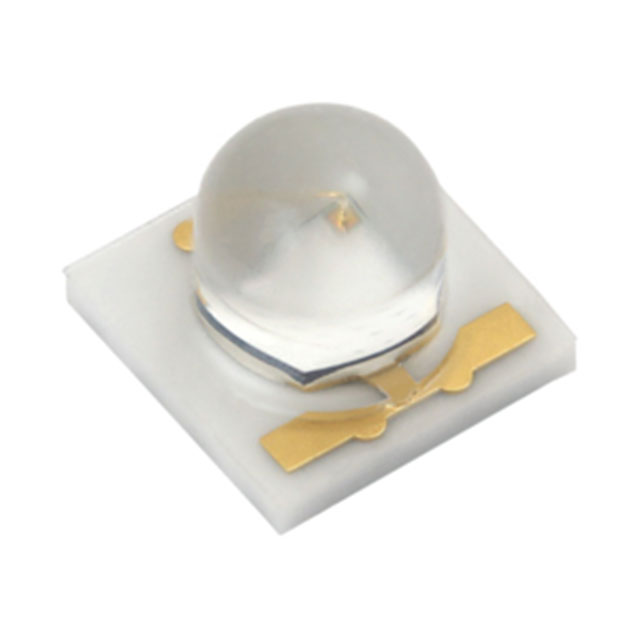

VLMU3520-395-060
UV EMITTERManufacturer: Vishay Semiconductor Opto Division
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Vishay Semiconductor Opto Division VLMU3520-395-060 is an ultraviolet (UV) emitter designed for demanding applications. This surface-mount component features a 395nm wavelength and operates with a typical forward voltage of 3.6V and a maximum DC forward current of 1.25A. It delivers a radiant intensity of 740mW/sr at 500mA with a 60° viewing angle. The VLMU3520-395-060 is housed in a 3-SMD, No Lead package suitable for automated assembly and operates across a wide temperature range of -40°C to 105°C. This UV emitter is commonly utilized in sterilization, curing, and analytical instrumentation. The component is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-SMD, No Lead |
| Wavelength | 395nm |
| Mounting Type | Surface Mount |
| Type | Ultraviolet (UV) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Forward (Vf) (Typ) | 3.6V |
| Viewing Angle | 60° |
| Current - DC Forward (If) (Max) | 1.25A |
| Radiant Intensity (Ie) Min @ If | 740mW/sr @ 500mA |
