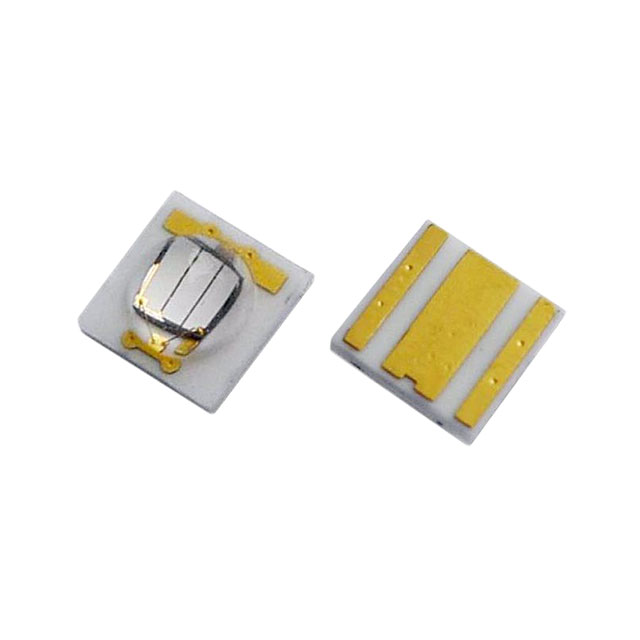

VLMU3500-405-120
LED UV 405NM 700MA SMDManufacturer: Vishay Semiconductor Opto Division
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Vishay Semiconductor Opto Division VLMU3500-405-120 is a surface-mount ultraviolet (UV) emitter with a peak wavelength of 405nm. This component features a forward voltage of 3.4V and a maximum forward current of 700mA. Its radiant intensity is specified at a minimum of 295mW/sr at 500mA, with a wide viewing angle of 120°. Packaged in a 2-SMD, No Lead Exposed Pad configuration and supplied on tape and reel, the VLMU3500-405-120 is designed for robust operation within an ambient temperature range of -40°C to 85°C. This UV emitter is suitable for applications in sterilization, curing, and fluorescence excitation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead Exposed Pad |
| Wavelength | 405nm |
| Mounting Type | Surface Mount |
| Type | Ultraviolet (UV) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 3.4V |
| Viewing Angle | 120° |
| Current - DC Forward (If) (Max) | 700mA |
| Radiant Intensity (Ie) Min @ If | 295mW/sr @ 500mA |
