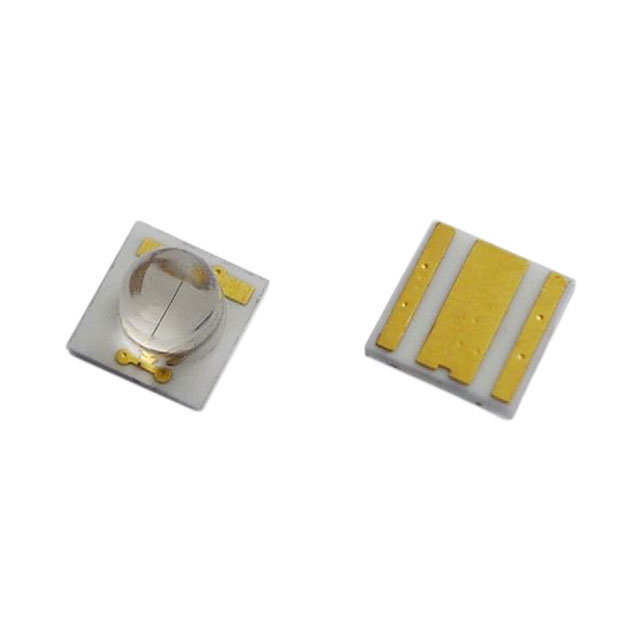

VLMU3500-405-060
LED UV 405NM 700MA SMDManufacturer: Vishay Semiconductor Opto Division
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Vishay Semiconductor Opto Division VLMU3500-405-060 is a surface-mount ultraviolet (UV) emitter. This component operates at a wavelength of 405nm with a typical forward voltage of 3.4V and a maximum forward current of 700mA. It offers a radiant intensity of 550mW/sr at 500mA and features a 60° viewing angle. The VLMU3500-405-060 is housed in a 2-SMD, No Lead Exposed Pad package and is supplied on tape and reel. Its operating temperature range is -40°C to 85°C. This UV emitter is suitable for applications in curing, sterilization, and analytical instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead Exposed Pad |
| Wavelength | 405nm |
| Mounting Type | Surface Mount |
| Type | Ultraviolet (UV) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 3.4V |
| Viewing Angle | 60° |
| Current - DC Forward (If) (Max) | 700mA |
| Radiant Intensity (Ie) Min @ If | 550mW/sr @ 500mA |
