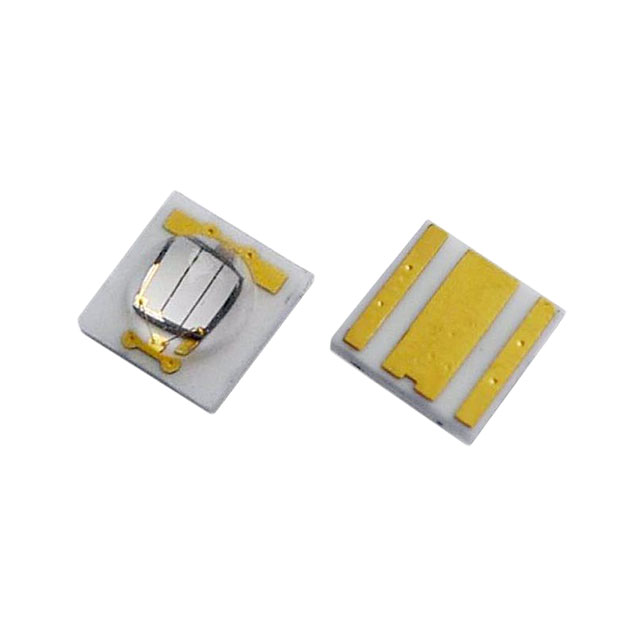

VLMU3500-395-120
LED UV 395NM 700MA SMDManufacturer: Vishay Semiconductor Opto Division
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Vishay Semiconductor Opto Division VLMU3500-395-120 is an ultraviolet (UV) emitter with a peak wavelength of 395nm. This surface-mount component features a 2-SMD, No Lead Exposed Pad package and operates with a typical forward voltage of 3.4V and a maximum DC forward current of 700mA. It delivers a radiant intensity of 295mW/sr at 500mA with a wide 120° viewing angle. The VLMU3500-395-120 is suitable for applications in areas such as curing, sterilization, and fluorescence detection, operating reliably within a temperature range of -40°C to 85°C. The unit is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead Exposed Pad |
| Wavelength | 395nm |
| Mounting Type | Surface Mount |
| Type | Ultraviolet (UV) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 3.4V |
| Viewing Angle | 120° |
| Current - DC Forward (If) (Max) | 700mA |
| Radiant Intensity (Ie) Min @ If | 295mW/sr @ 500mA |
