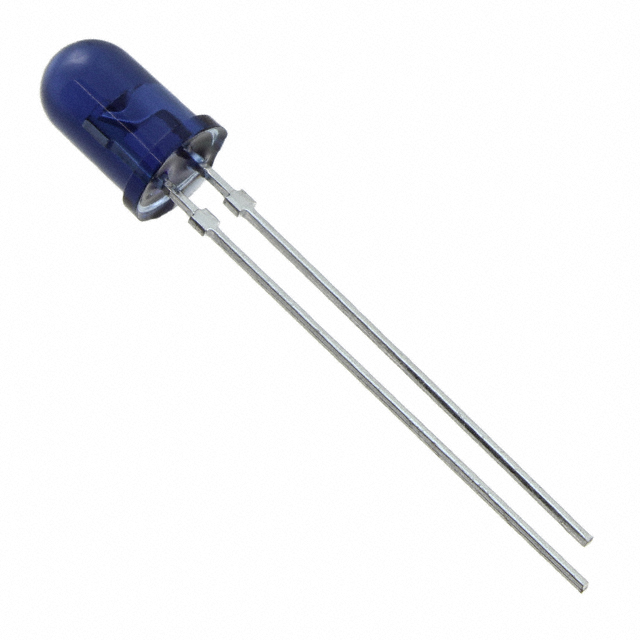

TSUS5202
EMITTER IR 950NM 150MA RADIALManufacturer: Vishay Semiconductor Opto Division
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Vishay Semiconductor Opto Division TSUS5202 is an infrared (IR) emitter designed for applications requiring precise optical signaling. This through-hole component features a 950nm wavelength, emitting radiation in the near-infrared spectrum. With a typical forward voltage (Vf) of 2.2V and a maximum DC forward current (If) of 150mA, it delivers a radiant intensity of 20mW/sr at 100mA. The TSUS5202 has a narrow 30° viewing angle, ensuring directional emission, and operates within a temperature range of -40°C to 85°C. Its radial package facilitates standard PCB mounting. This component is commonly employed in optical sensing, proximity detection, and data communication systems across various industrial, automotive, and consumer electronics sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial |
| Wavelength | 950nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Viewing Angle | 30° |
| Current - DC Forward (If) (Max) | 150mA |
| Radiant Intensity (Ie) Min @ If | 20mW/sr @ 100mA |
