TSUS4400
EMITTER IR 950NM 100MA RADIALManufacturer: Vishay Semiconductor Opto Division
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

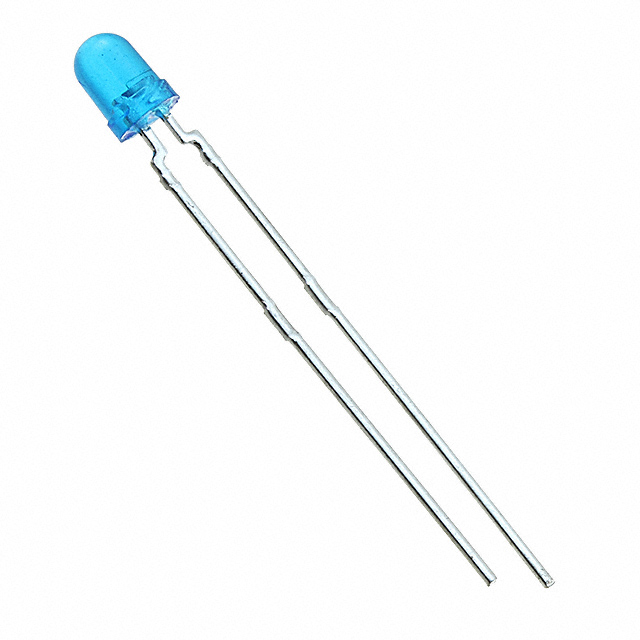

Vishay Semiconductor Opto Division TSUS4400, an infrared emitter, operates at a peak wavelength of 950nm. This through-hole component features a radial package and is supplied in bulk packaging. Designed for efficient IR emission, it has a typical forward voltage of 1.3V and a maximum DC forward current (If) of 100mA. At 100mA, the TSUS4400 exhibits a radiant intensity of 7mW/sr, with a viewing angle of 36°. Its operating temperature range is -40°C to 85°C. This component is commonly utilized in industrial automation, security systems, and consumer electronics for its reliable infrared transmission capabilities.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial |
| Wavelength | 950nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Viewing Angle | 36° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 7mW/sr @ 100mA |
