TSUS3400
EMITTER IR 950NM 100MA RADIALManufacturer: Vishay Semiconductor Opto Division
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

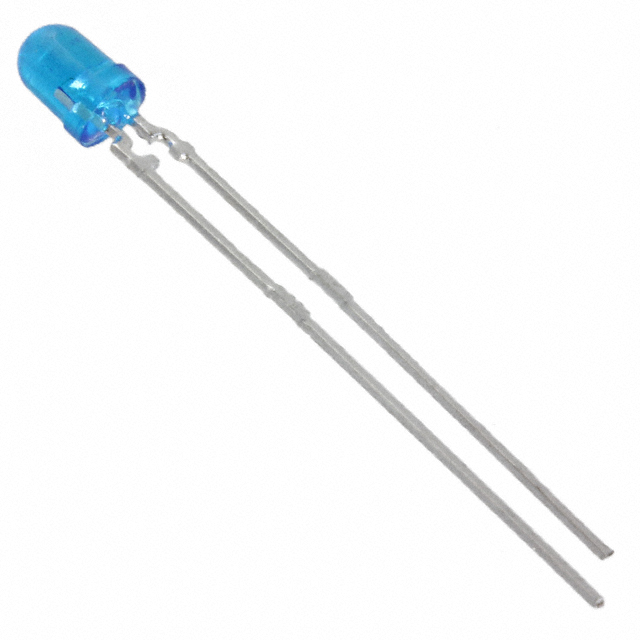

Vishay Semiconductor Opto Division TSUS3400 is a 950nm infrared emitter designed for through-hole mounting. This radial package component offers a typical forward voltage of 1.3V and a maximum DC forward current of 100mA. At its rated current, the TSUS3400 delivers a radiant intensity of 7mW/sr with a narrow 36° viewing angle. Its robust operating temperature range of -40°C to 100°C makes it suitable for demanding applications across various industries, including automotive, industrial automation, and security systems where reliable IR signal transmission is critical. The component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial |
| Wavelength | 950nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Viewing Angle | 36° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 7mW/sr @ 100mA |
