TSKS5400S
EMITTER IR 950NM 100MA RADIALManufacturer: Vishay Semiconductor Opto Division
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

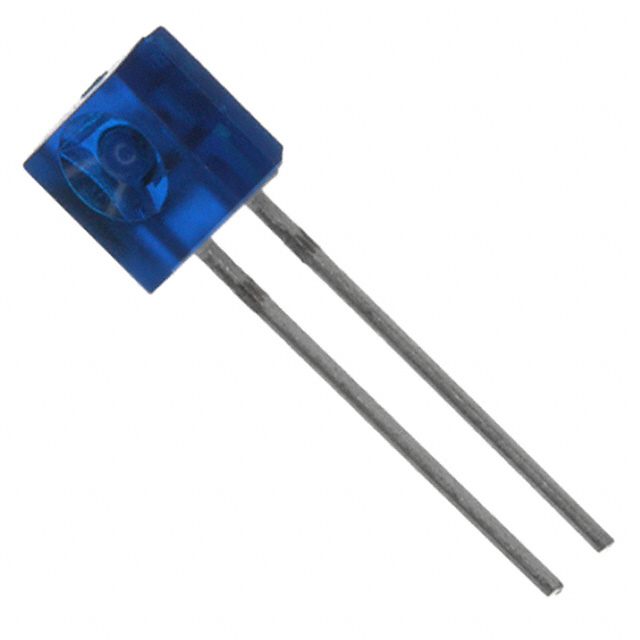

Vishay Semiconductor Opto Division TSKS5400S is a radial, side-view infrared emitter with a peak wavelength of 950nm. This component is designed for through-hole mounting and features a typical forward voltage of 1.3V at a maximum DC forward current of 100mA. The radiant intensity is specified as a minimum of 2mW/sr at 100mA, with a viewing angle of 60°. Operating temperature ranges from -25°C to 85°C. This Vishay Semiconductor Opto Division infrared emitter is commonly utilized in applications such as object detection, industrial automation, and medical sensing systems, where reliable optical signaling is critical. The component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial, Side View |
| Wavelength | 950nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Side View |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Viewing Angle | 60° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 2mW/sr @ 100mA |
