TSHG8400
EMITTER IR 830NM 100MA RADIALManufacturer: Vishay Semiconductor Opto Division
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

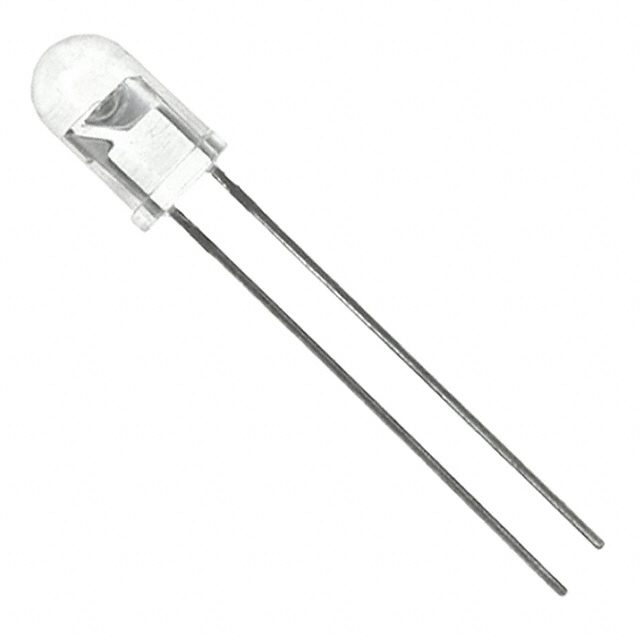

Vishay Semiconductor Opto Division TSHG8400 is an infrared emitter designed for demanding applications. This radial, 5mm diameter (T 1 3/4) component operates at a wavelength of 830nm, with a typical forward voltage of 1.5V and a maximum DC forward current of 100mA. It provides a radiant intensity of 45mW/sr at 100mA, and features a 44° viewing angle. The emitter is suitable for through-hole mounting and operates within an ambient temperature range of -40°C to 85°C. This component is commonly utilized in industrial automation, security systems, and optical sensing applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: Last Time BuyPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial, 5mm Dia (T 1 3/4) |
| Wavelength | 830nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 44° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 45mW/sr @ 100mA |
