TSHG8200
EMITTER IR 830NM 100MA RADIALManufacturer: Vishay Semiconductor Opto Division
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

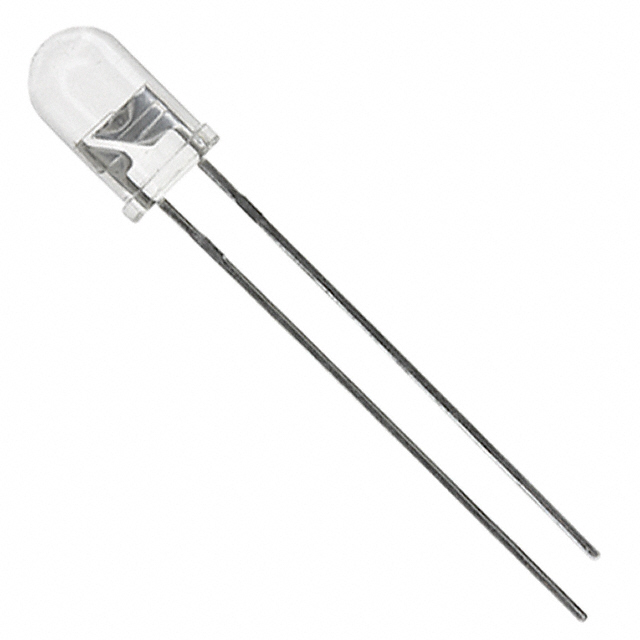

Vishay Semiconductor Opto Division TSHG8200 is an infrared emitter with a peak wavelength of 830nm. This through-hole component features a 20° viewing angle and a 5mm diameter radial package. It operates with a typical forward voltage of 1.5V and a maximum DC forward current of 100mA, delivering a radiant intensity of 120mW/sr at 100mA. The TSHG8200 is suitable for applications in industrial automation, security systems, and optical sensing. It is rated for operation across an ambient temperature range of -40°C to 85°C and is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: Last Time BuyPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial, 5mm Dia (T 1 3/4) |
| Wavelength | 830nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 20° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 120mW/sr @ 100mA |
