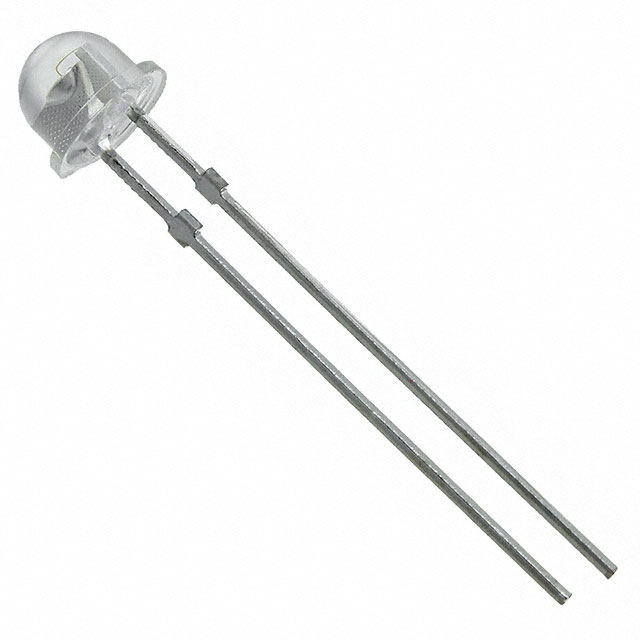

TSHG5510
EMITTER IR 830NM 100MA RADIALManufacturer: Vishay Semiconductor Opto Division
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Vishay Semiconductor Opto Division's TSHG5510 is an infrared emitter designed for demanding applications. This radial package component operates at a wavelength of 830nm, delivering a typical forward voltage of 1.45V and a maximum DC forward current of 100mA. The device offers a radiant intensity of 18mW/sr minimum at 100mA, with a wide viewing angle of 76°. Its through-hole mounting type and radial package are suitable for robust PCB integration. The TSHG5510 is engineered for operation across an extended temperature range of -40°C to 85°C (TA). This component finds application in industries such as industrial automation, security systems, and optical sensing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial |
| Wavelength | 830nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.45V |
| Viewing Angle | 76° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 18mW/sr @ 100mA |
