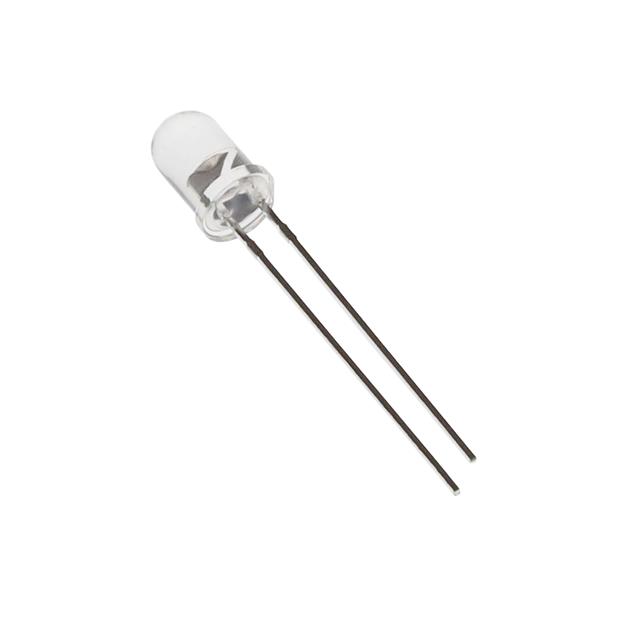

TSHA6203
EMITTER IR 875NM 100MA RADIALManufacturer: Vishay Semiconductor Opto Division
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
The Vishay Semiconductor Opto Division TSHA6203 is an infrared (IR) emitter designed for demanding applications. This component features a peak wavelength of 875nm and a forward voltage of 2.8V at a continuous forward current of 100mA. It delivers a minimum radiant intensity of 50mW/sr at 100mA with a narrow viewing angle of 24°. The TSHA6203 is housed in a radial package suitable for through-hole mounting and operates within an ambient temperature range of -40°C to 85°C. Its specifications make it suitable for use in optical sensing, proximity detection, and industrial automation systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial |
| Wavelength | 875nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 2.8V |
| Viewing Angle | 24° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 50mW/sr @ 100mA |
