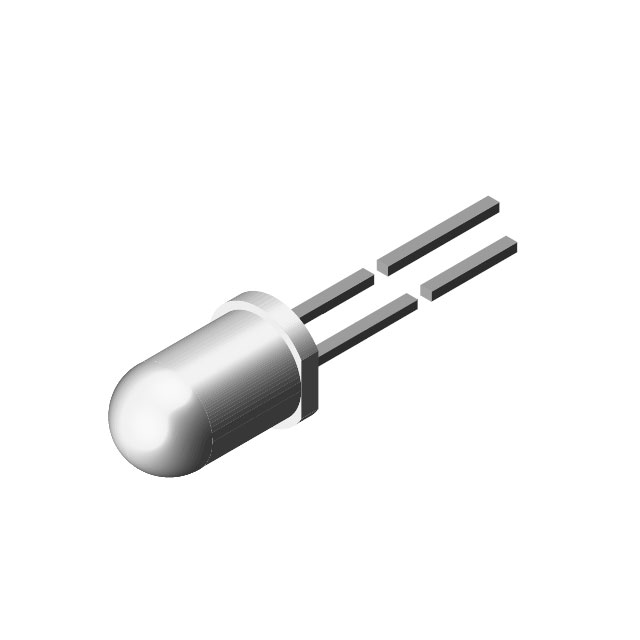

TSHA6200
EMITTER IR 875NM 100MA RADIALManufacturer: Vishay Semiconductor Opto Division
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Vishay Semiconductor Opto Division’s TSHA6200 is a high-performance infrared emitter designed for demanding applications. This radial-packaged device emits at a peak wavelength of 875nm, with a typical forward voltage of 2.8V. It supports a maximum DC forward current of 100mA, delivering a radiant intensity of 25mW/sr at this current. The TSHA6200 features a 24° viewing angle for focused illumination. Its through-hole mounting and radial package facilitate integration into various electronic designs. Operating across a temperature range of -40°C to 85°C, this infrared emitter is suitable for use in industrial automation, security systems, and optical sensing within the automotive and consumer electronics sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial |
| Wavelength | 875nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 2.8V |
| Viewing Angle | 24° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 25mW/sr @ 100mA |
