TSHA4400
EMITTER IR 875NM 100MA RADIALManufacturer: Vishay Semiconductor Opto Division
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

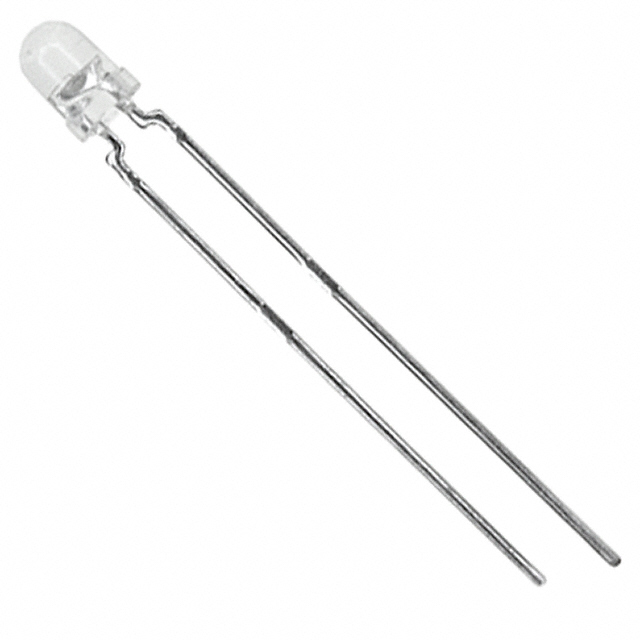

Vishay Semiconductor Opto Division TSHA4400 is an 875nm infrared emitter featuring a 40° viewing angle. This through-hole component operates with a typical forward voltage of 1.5V and a maximum DC forward current of 100mA. At 100mA, it provides a radiant intensity of 12mW/sr. The TSHA4400 is housed in a 3mm diameter radial package and is suitable for applications in industries such as industrial automation, security systems, and optical sensing. Its operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial, 3mm Dia (T-1) |
| Wavelength | 875nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 40° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 12mW/sr @ 100mA |
