TSFF5510
EMITTER IR 870NM 100MA RADIALManufacturer: Vishay Semiconductor Opto Division
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

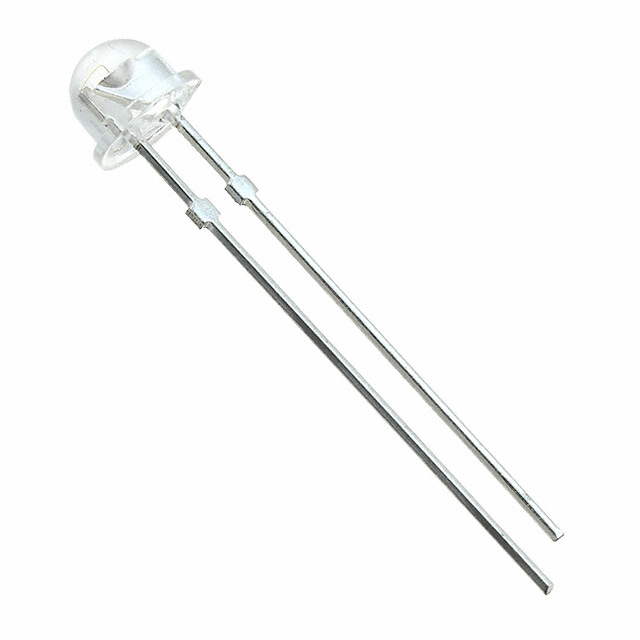

Vishay Semiconductor Opto Division TSFF5510 is an infrared emitter designed for efficient optical signaling. This radial package component operates at a wavelength of 870nm, providing a forward voltage of 1.3V (typical) and a maximum DC forward current of 100mA. The TSFF5510 offers a radiant intensity of 16mW/sr at 100mA with a wide viewing angle of 76°. Its through-hole mounting type and radial package are suitable for various assembly processes. The operating temperature range is -40°C to 85°C, ensuring reliable performance across demanding environments. This component finds application in industries such as industrial automation, security systems, and consumer electronics for proximity sensing, data transmission, and object detection.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial |
| Wavelength | 870nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Viewing Angle | 76° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 16mW/sr @ 100mA |
