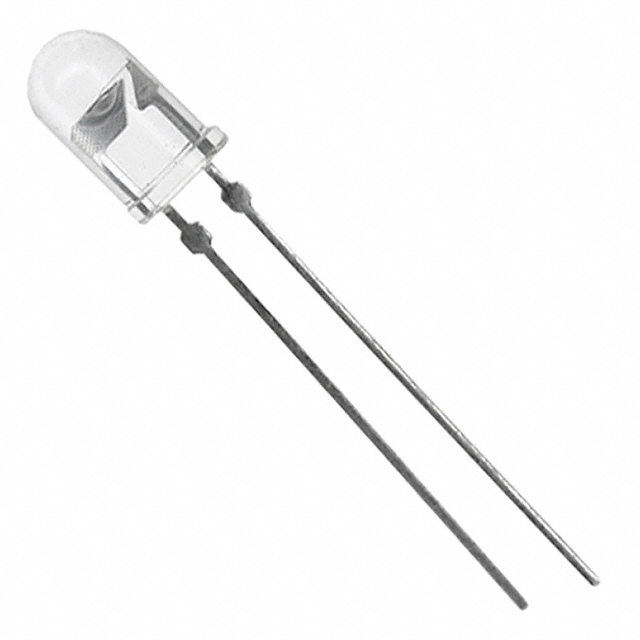

TSFF5410
EMITTER IR 870NM 100MA RADIALManufacturer: Vishay Semiconductor Opto Division
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Vishay Semiconductor Opto Division TSFF5410 is an infrared (IR) emitter with a wavelength of 870nm. This through-hole mounted component features a 5mm diameter radial package (T 1 3/4) and offers a typical forward voltage of 1.5V at a maximum DC forward current of 100mA. The radiant intensity is rated at a minimum of 45mW/sr at 100mA, with a viewing angle of 44°. Operating within a temperature range of -40°C to 85°C (TA), this emitter is suitable for applications requiring reliable IR illumination. Its robust construction and specified performance characteristics make it a valuable component in areas such as industrial automation, security systems, and sensor technology.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial, 5mm Dia (T 1 3/4) |
| Wavelength | 870nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 44° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 45mW/sr @ 100mA |
