TSFF5210
EMITTER IR 870NM 100MA RADIALManufacturer: Vishay Semiconductor Opto Division
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

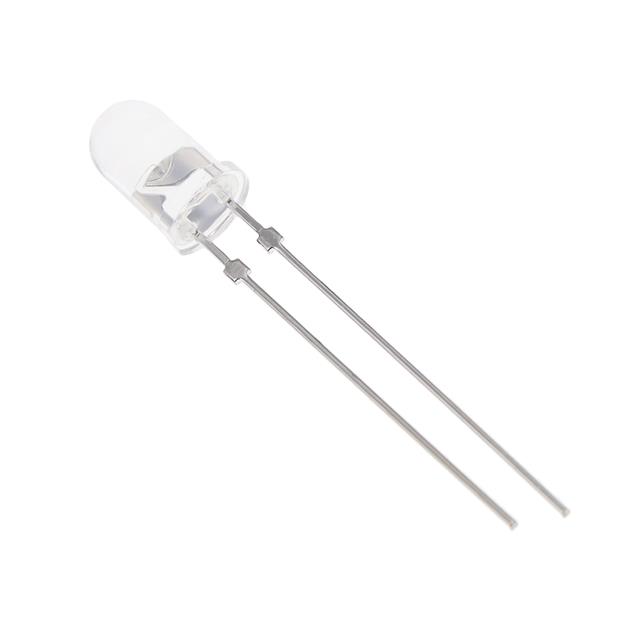

Vishay Semiconductor Opto Division TSFF5210 is an 870nm infrared emitter designed for through-hole mounting. This radial, 5mm diameter (T 1 3/4) component offers a typical forward voltage of 1.5V and a maximum DC forward current of 100mA. At 100mA, it achieves a radiant intensity of 120mW/sr and a viewing angle of 20°. The emitter operates within a temperature range of -40°C to 85°C. Applications include optical sensing, data transmission, and industrial automation. This component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial, 5mm Dia (T 1 3/4) |
| Wavelength | 870nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 20° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 120mW/sr @ 100mA |
