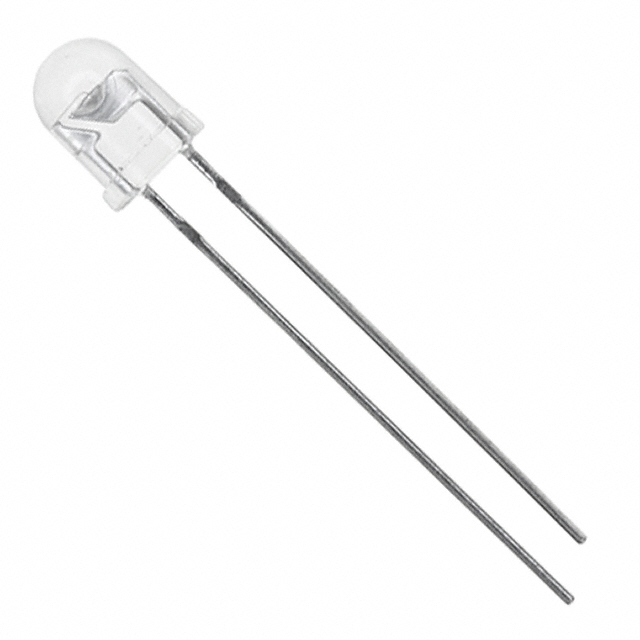

TSAL7600
EMITTER IR 940NM 100MA RADIALManufacturer: Vishay Semiconductor Opto Division
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Vishay Semiconductor Opto Division TSAL7600 is a through-hole mounted infrared (IR) emitter designed for applications requiring precise optical signaling. This component features a 940nm wavelength with a typical forward voltage of 1.35V at 100mA. The TSAL7600 offers a radiant intensity of 15mW/sr at its maximum DC forward current of 100mA, with a wide 60° viewing angle. Encased in a standard 5mm diameter radial package (T 1 3/4), it operates within a temperature range of -40°C to 85°C. This IR emitter is commonly utilized in industrial automation, security systems, and remote control applications where reliable IR transmission is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial, 5mm Dia (T 1 3/4) |
| Wavelength | 940nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.35V |
| Viewing Angle | 60° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 15mW/sr @ 100mA |
