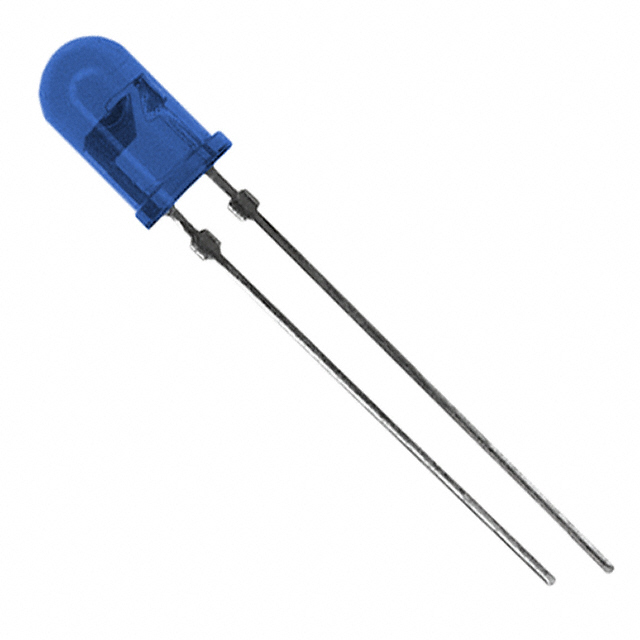

TSAL5300
EMITTER IR 940NM 100MA RADIALManufacturer: Vishay Semiconductor Opto Division
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Vishay Semiconductor Opto Division TSAL5300 is a 940nm infrared emitter. This radial lead component features a forward voltage of 1.35V and a maximum DC forward current of 100mA. With a radiant intensity of 30mW/sr at 100mA, it offers a 44° viewing angle. The emitter is housed in a 5mm diameter (T 1 3/4) radial package suitable for through-hole mounting. Operating temperature ranges from -40°C to 85°C. This component is commonly utilized in proximity sensing, security systems, and automotive applications requiring reliable IR signaling.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial, 5mm Dia (T 1 3/4) |
| Wavelength | 940nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.35V |
| Viewing Angle | 44° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 30mW/sr @ 100mA |
