VLMK71ABAD-GS08
LED LITTLE STAR AMBER 615NM SMDManufacturer: Vishay Semiconductor Opto Division
Categories: LED Color Lighting
Quality Control: Learn More
Vishay Semiconductor Opto Division VLMK71ABAD-GS08 is an amber LED from the Little Star® series, featuring a 615nm peak wavelength (610nm ~ 620nm). This surface mount component is housed in a 2424 (6060 Metric) package with dimensions of 0.236" x 0.236" (6.00mm x 6.00mm) and a maximum seated height of 0.059" (1.50mm). It is supplied on tape and reel (TR). The LED exhibits a typical forward voltage of 2.5V and a wide viewing angle of 120°. At a test current of 400mA, it delivers a luminous flux of 39lm (26lm ~ 52lm) and an efficacy of 39 lm/W. This component is suitable for automotive lighting and general illumination applications.
Additional Information
Series: Little Star®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2424 (6060 Metric) |
| Color | Amber |
| Wavelength | 615nm (610nm ~ 620nm) |
| Size / Dimension | 0.236"" L x 0.236"" W (6.00mm x 6.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.5V |
| Current - Test | 400mA |
| Viewing Angle | 120° |
| Current - Max | 400mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 39 lm/W |
| Height - Seated (Max) | 0.059"" (1.50mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 39lm (26lm ~ 52lm) |
Request a Quote
Clients Also Buy
VLMW711T3U2US-GS08
LED LITTLE STAR WHITE 4SMD
VLMY71AAAC-GS08
SMD LED LITTLE STAR YELLOW

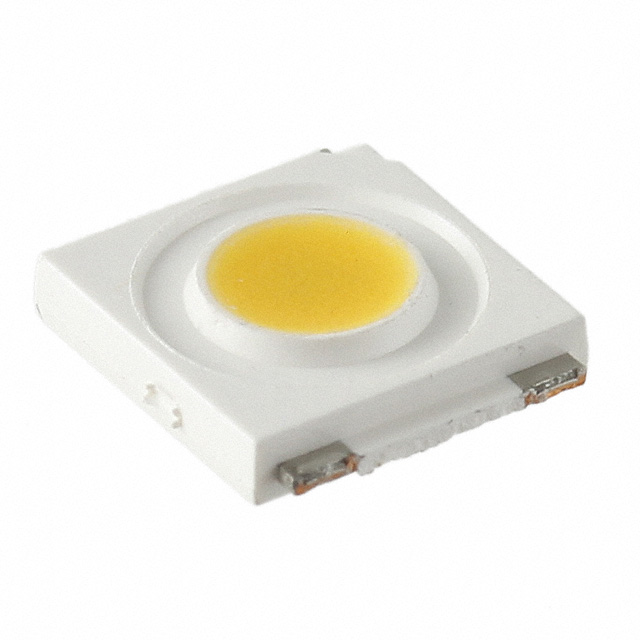

VLMW712T2T3QN-GS08
