VLPC1201A2J
LED MOD WH LNR LGT STRIP 7000KManufacturer: Vishay Semiconductor Opto Division
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

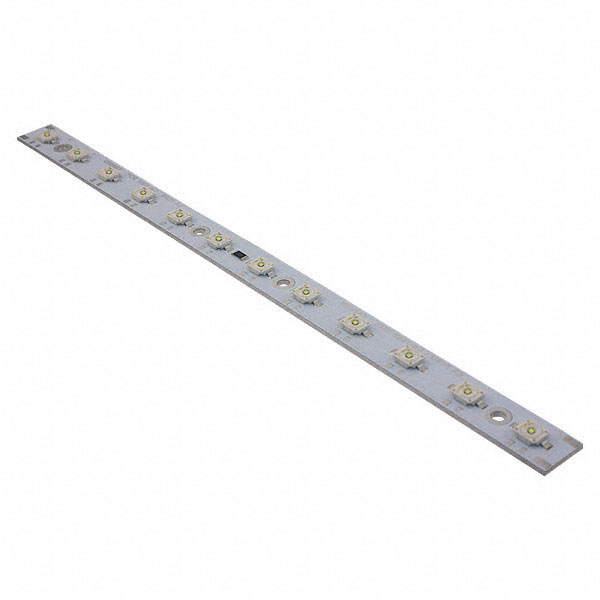

Vishay Semiconductor Opto Division VLPC1201A2J is a cool white linear LED module designed for high-intensity lighting applications. This module operates with a maximum forward current of 700mA and a forward voltage of 75V, delivering typical luminous flux of 2100lm at 700mA and 25°C. The module exhibits a luminous efficacy of 71 lm/W under test conditions. Featuring a linear light strip configuration, it provides a cool white light with a correlated color temperature (CCT) ranging from 5000K to 7000K. The module measures 240.00mm in length and 10.50mm in width, with a height of 4.50mm. This component is suitable for use in general lighting, architectural lighting, and industrial illumination systems. It is supplied in trays.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 240.00mm L x 10.50mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 75 V |
| Height | 4.50mm |
| Current - Test | 700mA |
| Viewing Angle | - |
| Lens Type | Flat |
| Current - Max | 700mA |
| Lumens/Watt @ Current - Test | 71 lm/W |
| CCT (K) | 5000K ~ 7000K |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 2100lm (Typ) |
