VDMO10A1
DISPLAY 7SEG 0.39"" SGL ORG 10SMDManufacturer: Vishay Semiconductor Opto Division
Categories: LED Character and Numeric
Quality Control: Learn More

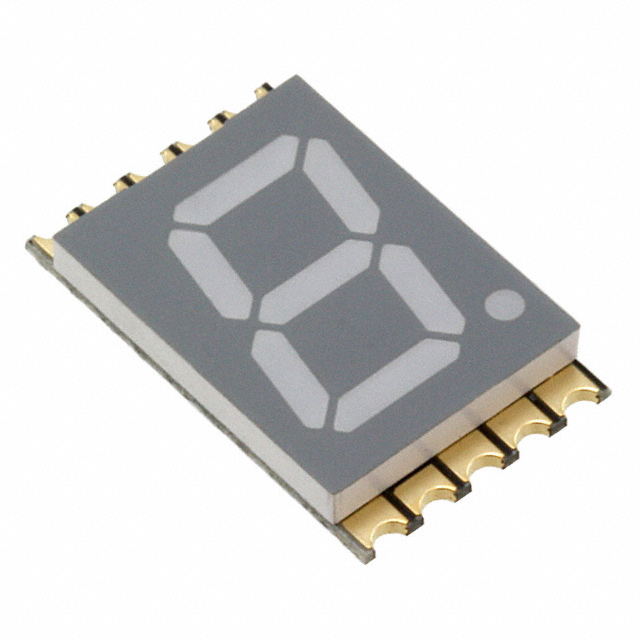

Vishay Semiconductor Opto Division VDM.10A1 is a single-digit, 7-segment numeric display module featuring a bright orange LED. This component operates with a typical forward voltage of 2V and a test current of 20mA, achieving a millicandela rating of 0.65mcd. The display character height is 0.39 inches (10.00mm). Designed with a common anode configuration, the VDM.10A1 is housed in a 10-SMD, No Lead package with dimensions of 16.00mm x 9.80mm x 1.50mm. It is supplied on a tape and reel for efficient automated assembly. This component is suitable for applications in industrial control, instrumentation, and consumer electronics requiring clear numeric indication.
Additional Information
Series: VDM.10A1RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-SMD, No Lead |
| Color | Orange |
| Display Type | 7-Segment |
| Size / Dimension | 0.630"" H x 0.386"" W x 0.059"" D (16.00mm x 9.80mm x 1.50mm) |
| Number of Characters | 1 |
| Millicandela Rating | 0.65mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.39"" (10.00mm) |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Wavelength - Peak | 605nm |
| Power Dissipation (Max) | 70mW |
Request a Quote
Clients Also Buy
VDMR10A1
DISPLAY 7SEG 0.39"" SGL RED 10SMD

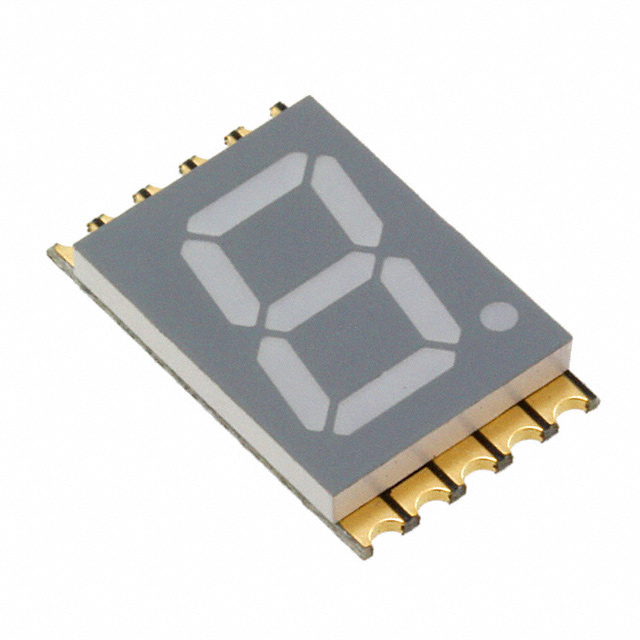

VDMY10A1
DISPLAY 7SEG 0.39"" SGL YLW 10SMD

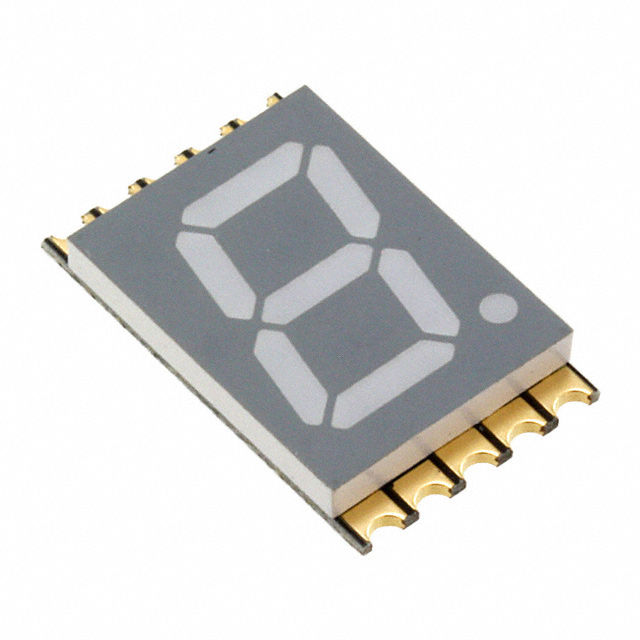

VDMG10A1
